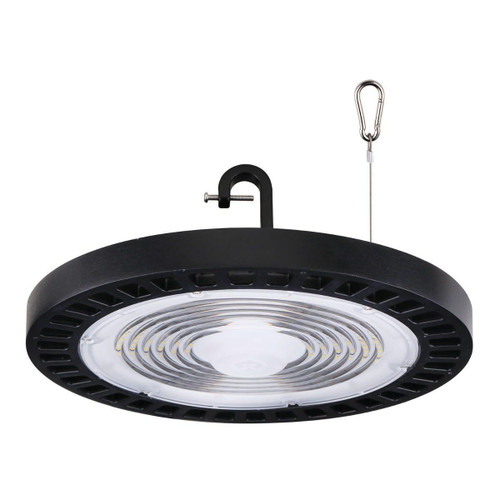

ERHB-150-50-U High-Output 150W Round Highbay For Warehouses And Retail | Daylight (5000 K) | IP65 Wet Rated
Designed to deliver dependable, high-output illumination, the Halco ERHB-150-50-U produces 21,000 lumens at Daylight (5000 K) while offering universal 120-277VAC compatibility, 0-10V dimming, and IP65 wet-location durability to reduce maintenance and improve facility lighting performance.
KEY FEATURES:
- High Output: 150W fixture producing 21,000 lumens for bright area illumination.
- Energy Efficient: 140 lm/W efficacy reduces operating costs versus legacy HID systems.
- Robust Construction: Die-cast aluminum housing with powder coat finish and polycarbonate lens for wet-location reliability.
- Integrated Protection: 6kv driver surge protection for improved system resilience.
- Flexible Controls: Universal 120-277VAC input with 0-10V dimming for simple integration with building controls.
APPLICATIONS:
- Warehouses and distribution centers.
- Gymnasiums and indoor sports facilities.
- Big-box retail and commercial showrooms.
- Installation Tip: Use the included 6' cord and 1/2" NPT hook or optional yoke/pendant mounts for proper mounting height and secure installation.
SPECIFICATIONS:
- Wattage: 150W
- Lumens: 21,000
- Efficacy: 140 LPW
- Color Temperature: 5000K
- CRI: >80 CRI
- L70 Lifetime (Hrs): >50,000Hrs
- Voltage: Universal 120-277VAC
- Dimming: 0-10VDC Dimming
- Amperage: 120VAC (1.25A) / 277VAC (0.54A)
- Surge Protection: 6kv Driver Surge Protection
- Power Factor: 0.9
- Housing: Die-cast Aluminum with Powder Coated Finish
- Lens: Polycarbonate Lens
- Operating Temperature: -30°C to 50°C
- Listings: UL, cUL, DLC Premium, FCC, RoHS
- Environment: IP65 Wet Rated
- Warranty: 5 Years Standard
