ERHB-1-LS-CS-U LED Round High Bay | Wattage & CCT Selectable Lighting for Warehouses, Gyms, and Retail Spaces

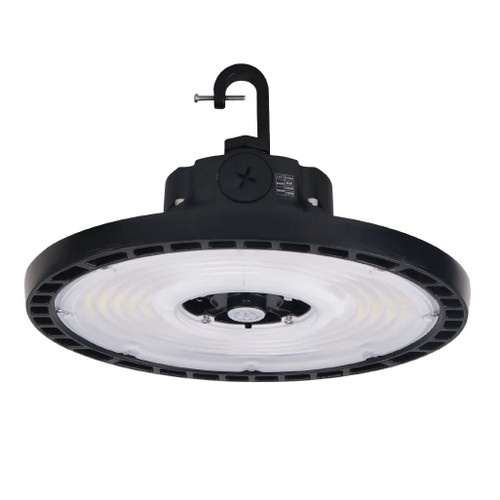

The Halco Essential Round High Bay ERHB-1-LS-CS-U is designed for cost-effective high-bay lighting applications where flexibility, efficiency, and long service life are essential. With field-selectable lumen output and color temperature, this fixture allows one SKU to adapt to multiple mounting heights and lighting requirements.
KEY FEATURES:
- Field-Selectable Output: Choose between 60W, 80W, or 100W to match ceiling height and required light levels.
- Flexible Lumen Packages: Delivers 9,900, 12,500, or up to 15,000 lumens at 5000K for efficient general illumination.
- CCT Selectable: Switchable between 4000K Cool White and 5000K Daylight to match existing lighting conditions.
- Durable Construction: Die-cast aluminum housing with black powder-coated finish and polycarbonate lens.
- Wet Location Rated: IP65 rating ensures dependable performance in dusty or damp environments.
- Controls Ready: Integrated 0–10V dimming with plug-and-play PIR or microwave motion sensor compatibility.
APPLICATIONS:
- Warehouses and light industrial facilities.
- Gymnasiums and recreational spaces.
- Big box retail and showrooms.
- Commercial spaces requiring efficient, uniform high-bay lighting.
SPECIFICATIONS:
- Brand: Halco Lighting Technologies
- SKU: 37310
- Product Code: ERHB-1-LS-CS-U
- Wattage: 60W / 80W / 100W selectable
- Lumens: 9,900 / 12,500 / 15,000 lumens at 5000K
- Efficacy: Up to 161 lm/W
- Color Temperature: 4000K or 5000K selectable
- CRI: 80+
- Beam Angle: 90°
- Input Voltage: Universal 120–277VAC
- Dimming: 0–10V continuous dimming
- Housing: Die-cast aluminum with black powder-coated finish
- Lens: Polycarbonate
- Mounting: 1/2" NPT steel hook (standard); optional yoke mount
- Power Cord: 6 ft, 18/3 shielded
- Operating Temperature: -40°C to 50°C (-40°F to 122°F)
- Environment: IP65 | Wet location rated
- Listings: UL, cUL, DLC 5.1 Premium
- L70 Lifetime: >100,000 hours
- Surge Protection: Built-in 6kV
- Warranty: 5-year limited warranty
CERTIFICATIONS & OPTIONS:
- Controls: Supports plug-in PIR and microwave sensors with optional remote control.
- Emergency: Compatible with optional 30W emergency battery backup (sold separately).
- Accessories: Wire guards, reflectors, junction box mount, pendant mount adapters, and yoke mount available.
