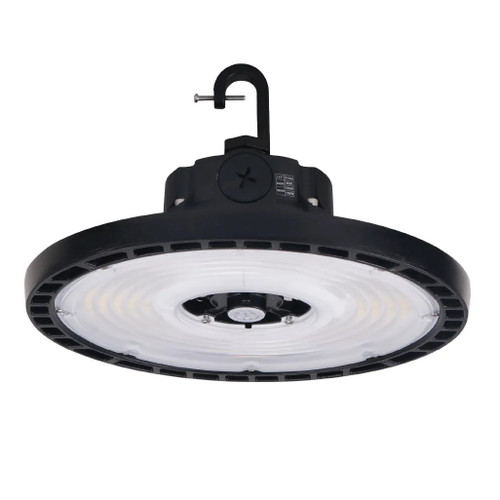

ERHB-2-LS-CS-U LED Round High Bay | CCT Selectable Cool White to Daylight Lighting For Warehouses, Gyms, And Retail Aisles
The Halco Essential Round High Bay ERHB-2-LS-CS-U is built to simplify large-area lighting upgrades in warehouses, gyms, and retail spaces by combining high lumen output, selectable wattage, & selectable color temperature in a single rugged fixture.
KEY FEATURES:
- Field-Selectable Output: Choose 90W, 120W, or 150W settings to match mounting heights and target light levels while standardizing on one SKU.
- High Lumen Performance: Delivers 13800, 18000, or 21600 lumens at 5000K for bright, uniform illumination in demanding industrial environments.
- CCT Flexibility: Switchable between 4000K Cool White and 5000K Daylight to coordinate with existing lighting or meet project preferences.
- Durable Construction: Die-cast aluminum housing with black powder-coat finish and polycarbonate lens is rated IP65 for wet locations and wash-down areas.
- Controls Ready: 0-10V dimming and plug-in PIR or microwave sensor options help reduce energy use and support code-compliant strategies.
- Installer Friendly: Standard 6 foot power cord, integral hook, and optional yoke bracket simplify installs and retrofits.
APPLICATIONS:
- Warehouse and distribution centers needing efficient lighting at typical high-bay mounting heights.
- Gymnasiums and recreational facilities requiring bright, glare-controlled illumination.
- Big box retail and showrooms needing clean, even illumination across wide floor areas.
- Ideal where selectable wattage and CCT allow one stocked SKU to handle multiple ceiling heights and design requirements.
SPECIFICATIONS:
- Brand: Halco Lighting Technologies
- SKU: 37311
- Product Code: ERHB-2-LS-CS-U
- Wattage: 90W / 120W / 150W selectable
- Lumens: 13800 / 18000 / 21600 lumens at 5000K
- Efficacy: Up to 156 lm/W
- Color Temperature: 4000K / 5000K selectable
- CRI: 80+
- Distribution: 90°
- Voltage: 120–277V
- Dimming: 0–10V
- Housing: Die-cast aluminum, black powder coated
- Lens: Polycarbonate
- Power Cord: 6 ft, 18/3 shielded
- Mounting: 1/2" NPT steel hook; optional yoke mount
- Operating Temp: -40°C to 50°C
- Environment: IP65 | Wet location rated
- Listings: UL/cUL | DLC 5.1 Premium
- L70 Life: 100,000+ hours
- Surge Protection: 6kV built-in
- Warranty: 5 years
CERTIFICATIONS & NOTES:
- Controls: Supports plug-in PIR or microwave sensors and optional remote setup.
- Emergency: Compatible with 30W emergency battery pack (sold separately).
- Accessories: Optional wire guard and reflectors for tailored glare control.
