Description

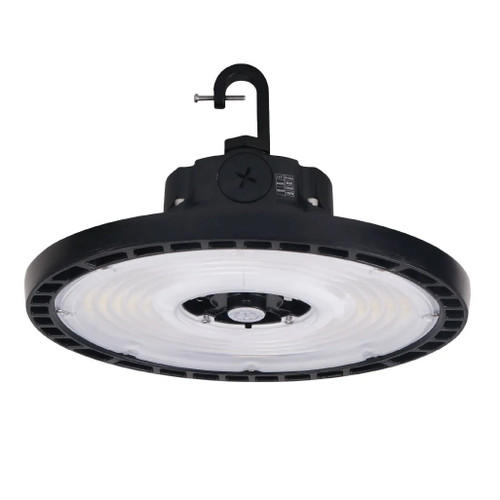

ERHB-4-LS-CS-U LED Round High Bay | Ultra High Output Lumen & CCT Selectable Lighting for Warehouses and Industrial Facilities
The Halco Essential Round High Bay ERHB-4-LS-CS-U is engineered for the most demanding high-ceiling applications where maximum lumen output and long-term reliability are required. With field-selectable wattage and color temperature, this high-output fixture allows one SKU to cover multiple mounting heights and lighting requirements while maintaining excellent efficiency.
KEY FEATURES:
- Field-Selectable Output: Choose between 180W, 210W, or 240W to optimize light levels for very high mounting heights.
- Ultra High Lumen Performance: Delivers 26,700, 30,600, or up to 34,200 lumens at 5000K for powerful, uniform illumination.
- CCT Selectable: Switchable between 4000K Cool White and 5000K Daylight for consistent visual environments.
- Heavy-Duty Construction: Die-cast aluminum housing with black powder-coated finish and impact-resistant polycarbonate lens.
- Wet Location Rated: IP65 rating ensures dependable operation in dusty, damp, or wash-down environments.
- Controls Ready: Integrated 0–10V dimming with plug-and-play PIR or microwave motion sensor compatibility.
APPLICATIONS:
- High-bay warehouses and distribution centers with very high ceilings.
- Manufacturing plants requiring maximum light output.
- Large-format retail and logistics facilities.
- Gymnasiums and industrial spaces demanding high visibility and uniform illumination.
SPECIFICATIONS:
- Brand: Halco Lighting Technologies
- SKU: 37313
- Product Code: ERHB-4-LS-CS-U
- Wattage: 180W / 210W / 240W selectable
- Lumens: 26,700 / 30,600 / 34,200 lumens at 5000K
- Efficacy: Up to 153 lm/W
- Color Temperature: 4000K or 5000K selectable
- CRI: 80+
- Beam Angle: 90°
- Input Voltage: Universal 120–277VAC
- Dimming: 0–10V continuous dimming
- Housing: Die-cast aluminum with black powder-coated finish
- Lens: Polycarbonate
- Mounting: 1/2" NPT steel hook (standard); optional yoke mount
- Power Cord: 6 ft, 18/3 shielded
- Operating Temperature: -40°C to 50°C (-40°F to 122°F)
- Environment: IP65 | Wet location rated
- Listings: UL, cUL, DLC 5.1 Premium
- L70 Lifetime: >100,000 hours
- Surge Protection: Built-in 6kV
- Warranty: 5-year limited warranty
CERTIFICATIONS & OPTIONS:
- Controls: Supports plug-in PIR and microwave sensors with optional remote control.
- Emergency: Compatible with optional 30W emergency battery backup (sold separately).
- Accessories: Wire guards, reflectors, junction box mount, pendant mount adapters, and yoke mount available.
