Description
LPWP-1-LS-CS-U-BZ - 120-277V - Outdoor Wall Mount with Built In LED and Lumen Adjustable - Wide Glass Optics - Low Profile Design

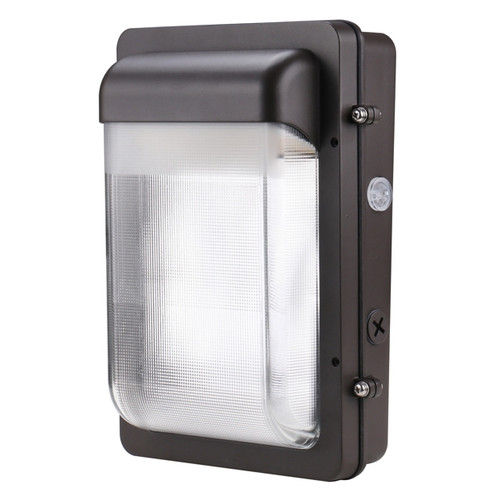

The Halco 39860 LPWP-1-LS-CS-U-BZ delivers a modernized take on wall-mounted exterior lighting for offices, schools, and loading areas. Replace outdated HID wall packs and reduce maintenance with its advanced LED technology: you'll benefit from directional, low-glare lighting that adapts to the needs of your space. Its sleek, low-profile bronze housing conceals legacy stains while offering a durable, architectural finish for commercial exteriors.
KEY FEATURES:
- Ultimate Flexibility: Field-selectable color temperature (CCT) and adjustable lumen output suit diverse exterior requirements.
- Quick Installation, Minimal Upkeep: Hinged door frame, captive screws, and integrated photocell simplify mounting and operation.
- Advanced Prismatic Glass: Shatter-resistant lens reduces glare while maximizing forward throw for broad, even coverage.
- Wet Location Rated: Fully sealed die-cast aluminum housing with silicone gasketing and IP65 protection holds up to outdoor weather.
- Energy Efficient: 135 LPW efficacy and selectable 15/20/25W reduce energy cost versus 100W CFL or HID legacy units.
APPLICATIONS:
- Perfect for retail building entrances, school perimeters, and self-storage exteriors needing improved visibility at night.
- Ideal for alleyways and between-building walkways where low-profile yet high-output lighting makes a difference.
- Recommended for facility upgrades replacing glass HID wall packs; install where a sleek appearance and selectable features are valued.
SPECIFICATIONS:
- Wattage: 15W / 20W / 25W Selectable
- Lumens: 1,950-3,300 Selectable
- Efficacy: 135 lm/W
- Color Temperature: 3000K / 4000K / 5000K Selectable
- CRI: >90
- Lifespan: >50,000 hours (L70)
- Voltage: 120-277VAC Universal
- Dimmable: 0-10V
- Housing: Die-cast aluminum, bronze powder coat
- Lens: Prismatic borosilicate glass, shatter-resistant
- Operating Temp: -13°F to 113°F (-25°C to 45°C)
- Dimensions (HxWxD): 11-7/16" x 9-1/16" x 4-1/4"
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium, UL, cUL, RoHS
- Environment: Outdoor rated, wet location (IP65)
- Warranty: 5 years
