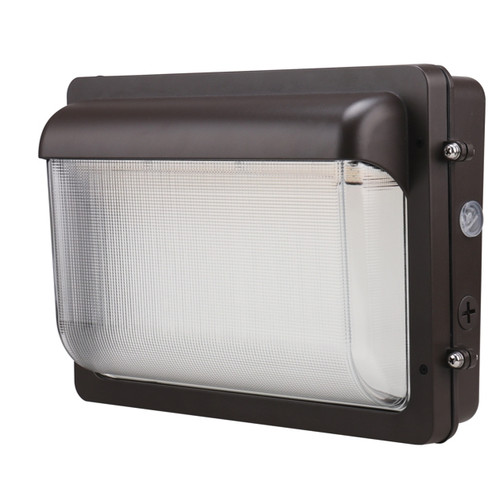

LPWP-2-HLS-CS-U-BZ - Selectable 3000K-4000K-5000K - Photocell-Enable/Disable - 120-277VAC
Transform building exteriors and high-traffic entryways with the Halco 39862 LPWP-2-HLS-CS-U-BZ, an advanced low profile LED wall pack built for demanding outdoor illumination. With selectable color temperatures and field-adjustable lumen output, this fixture lets you maximize security and curb appeal while reducing long-term energy costs and lighting maintenance.
KEY FEATURES:
- Flexible Output: Field-selectable wattage (70W-100W) and lumen output (9,000-13,000 lumens) adapt to each installation.
- Customizable Ambience: Switchable CCT (3000K, 4000K or 5000K) provides warm, cool, or daylight illumination as needed.
- Energy Savings: Replaces up to 400W HID, slashing energy consumption and utility expenses.
- Integrated Photocell: Built-in, enable/disable photocell for automatic dusk-to-dawn operation.
- Glare Reduction: Borosilicate glass lens ensures optimal distribution and minimizes direct glare.
- Durable Build: Die-cast aluminum housing with architectural bronze finish for lasting performance in harsh weather.
- Quick Installation: Hinged door frame and captive screws accelerate mounting and service.
APPLICATIONS:
- Ideal for perimeter security lighting on commercial facilities and office parks.
- Well-suited for entrances, loading docks, and walkways requiring uniform, high-output lighting.
- Excellent for big box retailers, K-12 schools, and self-storage locations where robust outdoor lighting is critical.
- Tip: Best for projects needing field-tunable brightness and color tuning to align with evolving safety or aesthetic requirements.
SPECIFICATIONS:
- Wattage: 70W, 80W, 90W, 100W Selectable
- Lumens: 9,000-13,000 (field selectable)
- Efficacy: 135 LPW
- Color Temperature: 3000K, 4000K, 5000K Selectable
- CRI: >90
- Voltage: 120-277VAC
- Dimming: 0-10V
- Housing Material: Die-cast aluminum
- Lens: Prismatic borosilicate glass
- Lifespan: >50,000 hours (L70)
- Operating Temperature: -13°F to 113°F (-25°C to 45°C)
- Finish: Bronze
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL, cULus, RoHS
- Performance: DLC 5.1 Premium Listed
- Location Rating: IP65 Rated, suitable for wet locations
- Warranty: 5-year limited warranty
