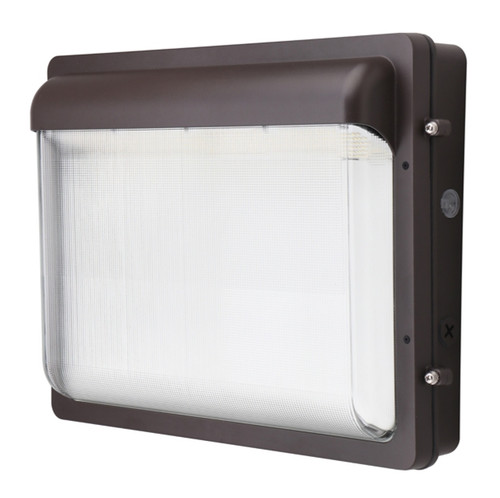

LPWP-3-LS-CS-U-BZ LED Wall Pack | CCT Adjustable Outdoor Security Fixture for Building Entrances and Walkways
Upgrade large commercial exteriors with the Halco 39863 Low Profile Glass LED Wall Pack a modern, slim luminaire designed for energy savings and superior visibility. Featuring field-selectable color temperatures and high lumen output, this fixture efficiently replaces bulky HID wall packs while blending seamlessly along building facades. The forward-throw prismatic glass lens delivers wide, even illumination ideal for pathways, entrances, and perimeter security, reducing glare and maintenance hassles.
KEY FEATURES:
- CCT & Lumen Adjustable: One fixture covers 13,000-19,000 lumens and color settings of 3000K, 4000K, or 5000K.
- Modern Low Profile: Sleek design hides old fixture stains for a polished architectural look.
- Integrated Photocell: Built-in daylight sensor with enable/disable switch for effortless dusk-to-dawn automation.
- Rugged Construction: Die-cast aluminum body and borosilicate prismatic glass resist weather and impact.
- High Efficiency: Delivers up to 138 lumens per watt to maximize energy cost reduction.
- Easy Install: Hinged door frame with captive screws streamlines mounting and maintenance.
APPLICATIONS:
- Perfect for loading docks, retail and big box store perimeters, and college or business campuses.
- Great choice for illuminating alleys and building walkways to enhance nighttime security.
- Optimal for retrofit or new construction in wet exterior locations use integrated photocell for hands-off control.
SPECIFICATIONS:
- Wattage: 100W / 120W / 140W Selectable
- Lumens: 13,000-19,000 Selectable
- Efficacy: 138 LPW
- Color Temperature: 3000K / 4000K / 5000K Selectable
- CRI: >90
- Lifespan: >50,000 hours (L70)
- Dimming: 0-10V
- Voltage: 120-277VAC (Universal)
- Housing: Die-cast aluminum
- Lens: Shatter resistant borosilicate glass (prismatic)
- Power Factor: >0.9
- Ambient Temp Range: -13°F to 113°F (-25º to 45ºC)
- Finish: Bronze
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: UL, cUL, DLC 5.1 Premium, RoHS
- Location Rating: Wet Location, IP65 Outdoor Rated
- Photocell can be enabled or disabled for custom control
