Description

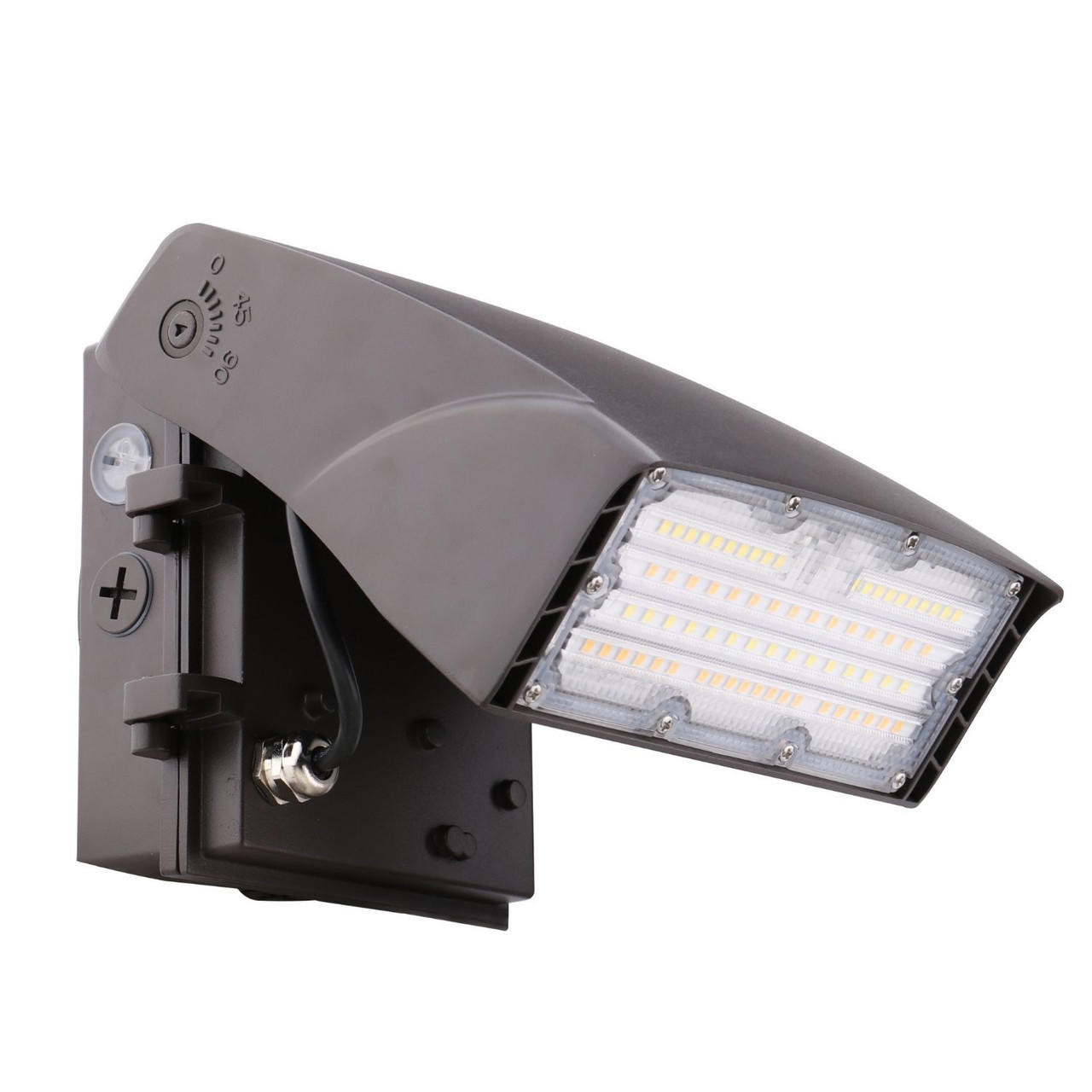

AWP-2-WS-CS-U-PC Adjustable Wallpack With 0-90° Tilt For Outdoor Security | CCT Selectable | Photocell-Enabled Wattage Selectable
Designed for fast retrofits on building exteriors and perimeter sites, this ProLED AWP unit reduces maintenance and inventory by combining field-selectable wattages and CCT with an integrated photocell and an adjustable head for precise light placement.
KEY FEATURES:
- Flexible Output: Field-Selectable Wattages (15W, 20W, 30W) let you tailor brightness on-site to save energy and reduce SKUs.
- CCT Selectable: Choose 3000K, 4000K, or 5000K in the field to match application needs without changing fixtures.
- Integrated Controls: Built-In Photocell (Enable/Disable) and 0-10V Dimming for daylighting and dimming strategies.
- Precision Aim: 0–90° Adjustable Head Places Light Exactly Where Needed, Cutting Spill Light And Glare.
- Durable Outdoor Design: IP65 Rated Die-Cast Housing With Polycarbonate Lens For Long-Term Wet-Location Performance.
APPLICATIONS:
- Building Entrances
- Loading Docks
- Walkways
- Tip: Mount at 0° for dark-sky friendly installations and reduced glare.
SPECIFICATIONS:
- Wattage: Selectable 15W, 20W, 30W (Base 30W)
- Lumens: 2,138–3,902 (Depending on Wattage and CCT)
- Efficacy: 121–148 LPW
- Color Temperature: 3000K / 4000K / 5000K (CCT Selectable)
- CRI: >70
- Voltage: Universal 120-277VAC
- Amperage: 120VAC (0.25A), 277VAC (0.11A)
- Dimming: 0-10V Dimming
- Integrated Photocell: Photocell Enable/Disable
- Tilt: 0–90° Adjustable Head
- L70 Lifetime: >100,000 Hours @ 25°C
- Surge Protection: 2.5kV
- Power Factor: >.90
- Housing: Die-Cast Aluminum With Powder Coat Finish
- Lens: Polycarbonate
- Operating Temperature: -40°C To 50°C
- Listings: cULus, DLC Premium, FCC
- Environment: IP65, UL Listed For Wet Location
- Weight: 3 lbs
- Warranty: 5 Years Standard
