Description

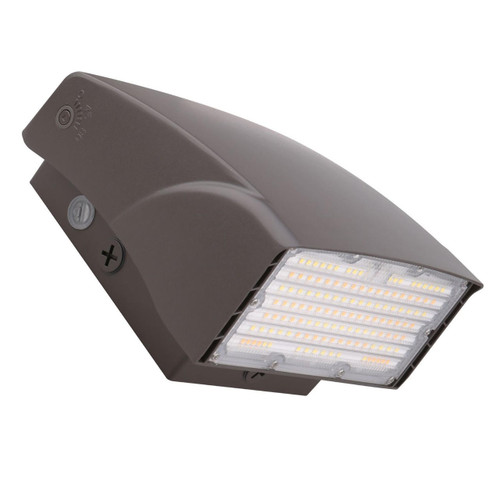

AWP-3-WS-CS-U-PC Adjustable Wallpack With Field-Selectable Wattages | CCT Selectable | Integrated Photocell And 50W Base
Designed to simplify exterior lighting installs, this adjustable wallpack delivers flexible lumen and CCT options so contractors can stock fewer SKUs while meeting diverse outdoor illumination needs with integrated dusk-to-dawn control.
KEY FEATURES:
- Field-Selectable Wattages: Choose 30W, 40W or 50W on-site to tailor light levels and energy use.
- CCT Flexibility: Select 3000K, 4000K or 5000K to match ambient color and application requirements.
- Integrated Photocell: Built-in enable/disable photocell provides simple dusk-to-dawn automation without extra controls.
- High Output Option: Up to 7,016 lumens available at 50W (4000K) for bright security and area lighting.
APPLICATIONS:
- Building entrances for consistent, controllable illumination.
- Loading docks where selectable output lets you balance visibility and energy use.
- Walkways and perimeter security to improve safety with daylighting controls.
- Tip: Use the wattage and CCT selections to optimize output for mounting height and spacing.
SPECIFICATIONS:
- Base Wattage: 50W (Wattage Selectable)
- Selectable Wattages: 30W, 40W, 50W
- Lumens (3000K / 4000K / 5000K):
- 30W — 3,877 / 4,422 / 4,017
- 40W — 5,356 / 5,713 / 5,515
- 50W — 6,601 / 7,016 / 6,699
- Efficacy: Up To 150 LPW (varies by wattage and CCT)
- Color Temperature: 3000K - 4000K - 5000K (Field Selectable)
- Voltage: 120-277VAC
- Photocell: Integrated, Enable/Disable
