Description

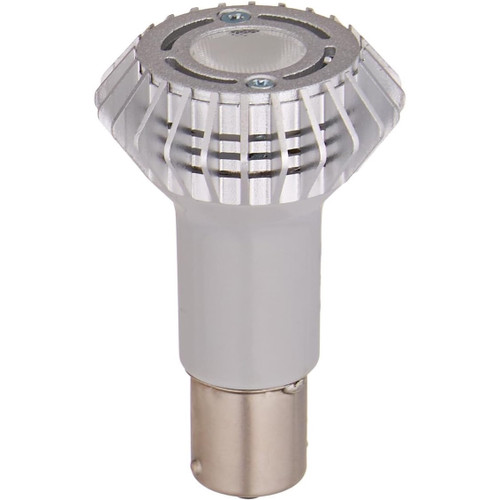

20W Equivalent Replacement LED Elevator Bulb | 2.6W | 10-18V | BA15d Base | Warm White
Halco 80756 GBF/3WW/LED is an efficient 2.6W LED lamp specifically designed to replace traditional 20W incandescent elevator bulbs. This elevator-specific LED lamp provides 145 lumens of warm white (2700K) illumination, along with an 82 CRI for accurate and consistent color rendering. Featuring a BA15d double-contact bayonet base and a versatile low-voltage operating range of 10-18 volts, this lamp simplifies installations and eliminates concerns of voltage drop. It significantly reduces energy usage by up to 87% compared to traditional incandescent bulbs and provides a long life of 40,000 hours.
Features
- Incandescent Replacement: 20W equivalent
- Wattage: 2.6W
- Lumen Output: 145 lumens
- Voltage Range: 10-18V (low-voltage)
- Base Type: BA15d (Double Contact Bayonet)
- CCT: 2700K (Warm White)
- CRI: 82
- Useful Life: 40,000 hours
- Non-Dimmable
- Not rated for enclosed fixtures
Benefits
- Energy Efficient: Uses 87% less energy compared to 20W incandescent lamps
- Extended Lifespan: Provides 20 times the life of traditional incandescent bulbs
- Quality Illumination: High CRI of 82 ensures accurate color rendering
- Low Maintenance: Reduces replacement frequency and related maintenance costs
- Easy Installation: Wide voltage range simplifies retrofitting and eliminates voltage drop calculations
Applications
- Elevator lighting
- Healthcare facilities
- Educational institutions
- Hotels and hospitality
- Office and retail environments
Product Specifications
- Model Number: 80756
- Input Voltage: 10-18V
- Wattage: 2.6W
- Luminous Output: 145 lumens
- CBCP: 410
- Base Type: BA15d (Double Contact Bayonet)
- Color Temperature: 2700K (Warm White)
- CRI: 82
- Maximum Overall Length (MOL): 2.52"
- Operating Temperature: Standard indoor commercial range
- Certifications: RoHS Compliant
- Warranty: 5-Year Limited
