Description

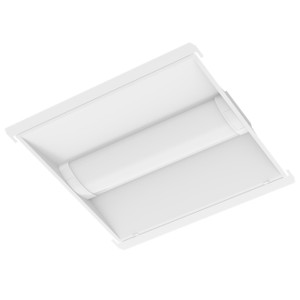

2x2 Square LED Center Basket Troffer | Selectable 20/25/30W and 3500K/4000K/5000K
The Halco 81799 is a 2x2 LED center basket troffer. Wattage and color temperature are selectable, so one fixture can match the light level and color the space needs. It is designed for 2x2 drop ceiling grids.
Features
- Customizable Output: Field-selectable color temperature (3500K/4000K/5000K) and adjustable lumen settings meet any room lighting requirements.
- Smart Sensor Integration: Built-in 3.5mm receptacle for easy compatibility with sensors and controls boosts energy management.
- Fast Installation: Controls ready design and removable end caps speed up on-site setup for contractors.
- Lasting Performance: Rated for 50,000+ hours, ensuring reduced maintenance and predictable operation.
- Modern Design: Frosted acrylic center basket lens supports visual comfort and distributes light evenly.
Specifications
- Product Code: CBT-22-LS-CS-UNV
- Size: 2x2 ft
- Fixture Type: Center Basket Troffer
- Wattage: 20/25/30W selectable
- Lumens: 2,500/3,125/4,000 lm
- Efficacy: 125 lm/W
- Color Temperature: 3500K/4000K/5000K selectable
- CRI: 80
- Voltage: 120-277V
- Dimming: 0-10V
- Rated Life: 50,000 hours
- Location Rating: Damp location, IC rated
- Warranty: 5 years
Installation & Compatibility
- Lays into standard 2x2 drop ceiling grids
- Accepts 3.5mm plug-in occupancy and daylight sensors
Rebates & Certifications
- UL Listed - DLC 5.1 Premium
- DLC Premium
- DLC listings often qualify for utility rebates. Check with your local utility before you buy.
Applications
- Desirable for offices, classrooms, and clinics seeking visual comfort with energy efficiency.
- Outstanding in drop ceilings, T-bar grids, and recessed commercial ceilings.
- Easily enhanced with integrated occupancy or daylight sensors for additional energy savings.
Frequently Asked Questions
Can I change the settings after installation?
Yes. Wattage (20/25/30W) and color temperature (3500K/4000K/5000K) are selectable on the fixture.
Is it dimmable?
Yes, with a 0-10V dimming control.
Does it qualify for rebates?
It is DLC Premium listed, which often qualifies for utility rebates. Check with your local utility.
