Description
2x2 Square LED Retrofit Kit | Selectable 20/25/30W and 3500K/4000K/5000K

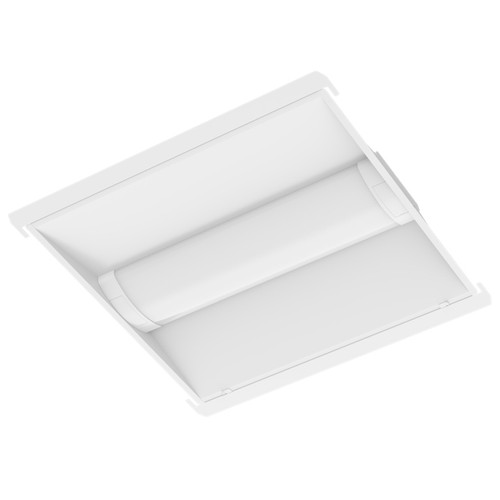

The Halco 81802 is a 2x2 LED retrofit kit. Wattage and color temperature are selectable, so one fixture can match the light level and color the space needs. It installs into an existing 2x2 troffer housing, so you can upgrade to LED without replacing the fixture.
Features
- Versatile Tuning: Field selectable color temperatures (3500K, 4000K, 5000K) and lumen outputs (2500, 3125, 4000 lm) suit varied tasks and spaces.
- Controls-Ready Build: Standard 3.5mm receptacle accepts integrated sensors for energy control and compliance with advanced lighting strategies.
- Ultra-Efficient: Delivers up to 137 LPW, slashing energy overhead and reducing HVAC loads thanks to lower heat output.
- Glare Control: Frosted acrylic center basket lens supplies uniform, low-glare light for improved visual comfort.
- Quick Retrofit: Designed for one-to-one replacement in most standard 2x2 fluorescent troffer and parabolic housings.
- Robust Construction: Heavy-duty steel/aluminum body and durable powder-coated finish for years of reliable use.
Specifications
- Product Code: CBT-RK-22-LS-CS-UNV
- Size: 2x2 ft
- Fixture Type: Retrofit Kit
- Wattage: 20/25/30W selectable
- Lumens: 2,500/3,125/4,000 lm
- Efficacy: 125 lm/W
- Color Temperature: 3500K/4000K/5000K selectable
- CRI: 80
- Voltage: 120-277V
- Dimming: 0-10V
- Rated Life: 50,000 hours
- Location Rating: Damp location, IC rated
- Warranty: 5 years
Installation & Compatibility
- Installs into existing 2x2 troffer housings
- Accepts 3.5mm plug-in occupancy and daylight sensors
Rebates & Certifications
- UL Listed
- DLC Premium
- DLC listings often qualify for utility rebates. Check with your local utility before you buy.
Applications
- Commercial office drop ceilings enhance productivity while cutting ongoing maintenance.
- K-12 schools or colleges upgrade learning spaces with customizable brightness and color tone.
- Healthcare clinics provides bright, consistent illumination ideal for exam rooms and corridors.
- Tip: Installs directly in most 2x2 grid ceiling troffer housings; perfect for controls-enabled lighting retrofits.
Frequently Asked Questions
Can I change the settings after installation?
Yes. Wattage (20/25/30W) and color temperature (3500K/4000K/5000K) are selectable on the fixture.
Is it dimmable?
Yes, with a 0-10V dimming control.
Does it qualify for rebates?
It is DLC Premium listed, which often qualifies for utility rebates. Check with your local utility.
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than the stated lead-time. All lead-times are estimates, and you will be notified by email if it will take longer than 5 business days to ship. Halco products ship directly from the manufacturer and require a combined minimum purchase of $150 in Halco merchandise. Multiple Halco items may be combined to meet the minimum.
