Description
2x2 Square LED Retrofit Kit with 90-Minute Emergency Battery Backup | Selectable 20/25/30W and 3500K/4000K/5000K

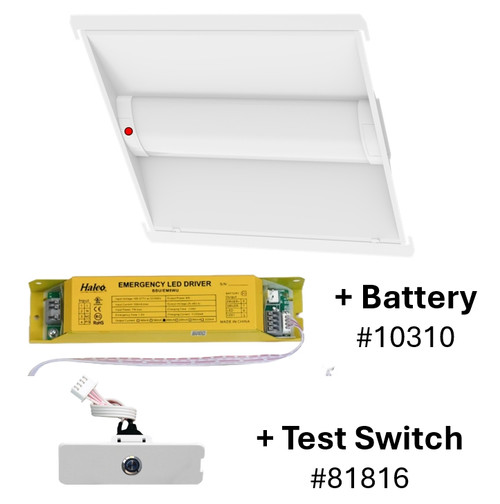

The Halco 81808 is a 2x2 LED retrofit kit with a built-in emergency battery backup that keeps it lit for at least 90 minutes during a power outage. Wattage and color temperature are selectable, so one fixture can match the light level and color the space needs. It installs into an existing 2x2 troffer housing, so you can upgrade to LED without replacing the fixture.
Features
- Emergency Power: Built-in battery backup delivers 90 minutes of light during outages, improving safety and code compliance.
- Flexible Lighting: CCT selectable (3500K, 4000K, 5000K) and lumen output adjustable (2500-4000 lumens) to suit any environment.
- Controls Ready: Accepts integrated sensors via 3.5mm receptacle for occupancy and daylight harvesting.
- Quick Retrofit: Converts existing troffer housings in minutes, minimizing labor costs and disruption.
- Efficient Performance: Delivers up to 125 LPW efficacy with smooth 0-10V dimming.
Specifications
- Product Code: CBT-RK-22-LS-CS-UNV-EM
- Size: 2x2 ft
- Fixture Type: Retrofit Kit
- Wattage: 20/25/30W selectable
- Lumens: 2,500/3,125/4,000 lm
- Efficacy: 125 lm/W
- Color Temperature: 3500K/4000K/5000K selectable
- CRI: 80
- Voltage: 120-277V
- Dimming: 0-10V
- Rated Life: 50,000 hours
- Location Rating: Damp location, IC rated
- Warranty: 5 years
Emergency Operation
- Battery Backup: Built-in, factory installed
- Runtime: 90 minutes minimum
Installation & Compatibility
- Installs into existing 2x2 troffer housings
- Accepts 3.5mm plug-in occupancy and daylight sensors
Rebates & Certifications
- cULus
- DLC Premium
- DLC listings often qualify for utility rebates. Check with your local utility before you buy.
Applications
- Ideal for office lighting upgrades in commercial and professional buildings.
- Suited for classrooms and corridors in educational facilities.
- Perfect for patient areas or hallways in healthcare environments especially where uninterrupted light is essential.
- Tip: Pair with compatible sensor controls for enhanced energy savings and hands-free operation.
- Spaces that need code-required emergency lighting
Frequently Asked Questions
Does this fixture have emergency backup?
Yes. It has a built-in battery backup that runs for at least 90 minutes when power is lost.
Can I change the settings after installation?
Yes. Wattage (20/25/30W) and color temperature (3500K/4000K/5000K) are selectable on the fixture.
Is it dimmable?
Yes, with a 0-10V dimming control.
Does it qualify for rebates?
It is DLC Premium listed, which often qualifies for utility rebates. Check with your local utility.
