Description

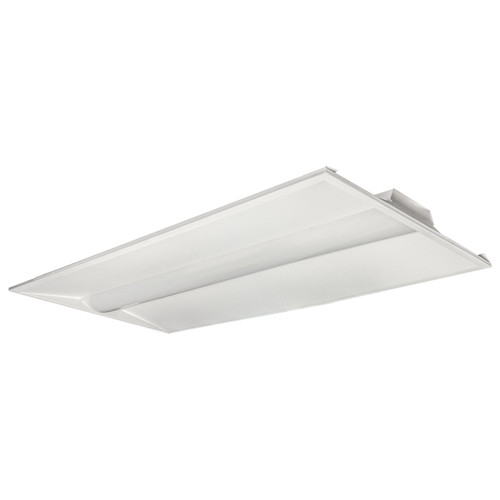

2x4 Rectangle LED Troffer with 90-Minute Emergency Battery Backup | Selectable 30/40/50W and 3500K/4000K/5000K
The Satco 65-693 is a 2x4 LED troffer with a built-in emergency battery backup that keeps it lit for at least 90 minutes during a power outage. Wattage and color temperature are selectable, so one fixture can match the light level and color the space needs. It is designed for 2x4 drop ceiling grids.
Features
- Wattage Selectable: 30W/40W/50W options let you balance energy use and brightness for different room sizes.
- Selectable Color Temperatures: Choose 3500K, 4000K, or 5000K to match interior tones and task requirements.
- Integrated Emergency Backup: 90-minute battery runtime provides reliable egress illumination during power interruptions.
- Durable, Low-Maintenance Design: Integrated LED with 50,000-hour rating and built-in 2kV surge protection reduces replacements and downtime.
- 0-10V Dimming: Smooth dimming compatibility for energy savings and lighting control integration.
Specifications
- Product Code: 65-693
- Size: 2x4 ft
- Fixture Type: Troffer
- Wattage: 30/40/50W selectable
- Lumens: 3300-5500 lm
- Color Temperature: 3500K/4000K/5000K selectable
- CRI: 80+
- Voltage: 120-277V
- Dimming: 0-10V
- Rated Life: 50,000 hours
- Location Rating: Damp location, IC rated
- Warranty: 5 years
Emergency Operation
- Battery Backup: Built-in, factory installed
- Runtime: 90 minutes minimum
Installation & Compatibility
- Lays into standard 2x4 drop ceiling grids
Rebates & Certifications
- cULus - Certified
- DLC Listed
- DLC listings often qualify for utility rebates. Check with your local utility before you buy.
Applications
- Ideal for office suites, classrooms, and retail spaces.
- Suitable for healthcare support areas and corridors.
- Works well in commercial ceiling grids and tenant improvement projects.
- Usage Tip: Use higher wattage settings for open areas or higher ceilings and lower settings for private offices or corridors.
- Spaces that need code-required emergency lighting
Frequently Asked Questions
Does this fixture have emergency backup?
Yes. It has a built-in battery backup that runs for at least 90 minutes when power is lost.
Can I change the settings after installation?
Yes. Wattage (30/40/50W) and color temperature (3500K/4000K/5000K) are selectable on the fixture.
Is it dimmable?
Yes, with a 0-10V dimming control.
