Description
HID36-CS-EX39-LED High Lumen Bulb | EX39 Base | Wattage Selectable 18W/27W/36W | 120–277V | Type B | Enclosed Rated

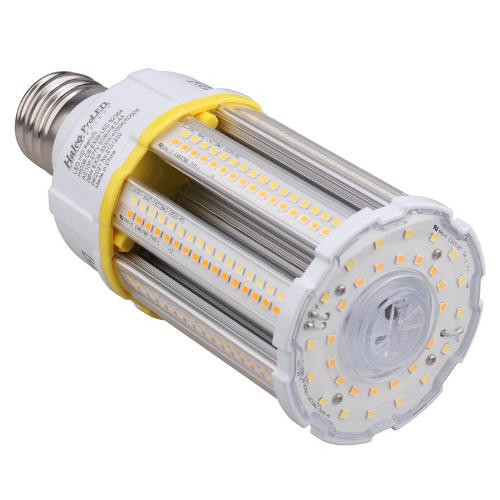

The Halco 82364 is a high-performance LED HID retrofit lamp designed for use in post tops, high bays, area lights, and other commercial or industrial luminaires. Featuring an EX39 mogul base, this ballast-bypass (Type B) lamp offers selectable wattages—18W, 27W, or 36W—and selectable color temperatures of 3000K, 4000K, or 5000K for unmatched application flexibility. Delivering up to 5,652 lumens at a high efficacy of up to 157 lm/W, it is suitable for use in enclosed fixtures and can operate in both vertical and horizontal positions.
Product Specifications
- Wattage: Selectable – 18W / 27W / 36W
-
Lumens:
- 18W: 2,520–2,826
- 27W: 3,780–4,239
- 36W: 5,040–5,652
- Color Temperature: 3000K / 4000K / 5000K (Selectable)
- Base Type: EX39 Mogul Base
- Voltage: 120–277V
- CRI: 83
- Efficacy: Up to 157 lm/W
- Surge Protection: 4kV
- Rated Life: 50,000 hours
- Mounting Position: Vertical or Horizontal
- Certifications: cUL Listed for Damp Locations, IP64, FCC
- Enclosed Fixture Rated: Yes
- Dimmable: No
Benefits
- One lamp replaces multiple SKUs with wattage and CCT selection
- High energy efficiency—up to 157 lumens per watt
- Suitable for enclosed luminaires
- Operates in any orientation for easy installation
- Long lifespan reduces maintenance costs
Applications
- Post top fixtures
- Area lighting
- High bays
- Industrial pendants
- Shoebox fixtures
