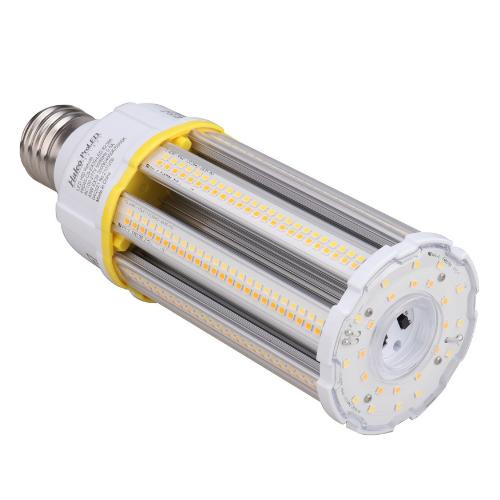

HID45-CS-EX39-LED High-Output 45W LED Retrofit For High Bays And Area Lighting | CCT Selectable | EX39 Base With Wattage Options
Engineered for fast HID-to-LED conversions, the Halco 82366 provides selectable CCT and wattage choices to closely match existing HID outputs while reducing maintenance and simplifying installs in high bay, post-top and area luminaires.
KEY FEATURES:
- CCT Selectable: 3000K / 4000K / 5000K selection for tailored color appearance.
- Wattage Selectable: Configurable 27W / 36W / 45W options (ships at 45W) to replace multiple HID wattages.
- Direct Replacement: EX39 base for easy retrofit into existing mogul-socket HID fixtures.
- High Output: Delivers up to 7,065 lumens (4000K @ 45W) for strong area illumination.
- Durable Electricals: 100-277V operation with 4kV surge protection for reliable performance.
APPLICATIONS:
- Ideal for High Bays in warehouses and manufacturing facilities.
- Well suited for Post-Top street and site lighting retrofit projects.
- Excellent for Area Lighting including lots and perimeter security.
- Usage Tip: Install vertical or horizontal; suitable for use in enclosed luminaires.
SPECIFICATIONS:
- Wattage: 27W / 36W / 45W (ships at 45W)
- Lumens (3K/4K/5K): 27W: 3,780 / 4,239 / 4,050 lm; 36W: 5,040 / 5,652 / 5,400 lm; 45W: 6,300 / 7,065 / 6,750 lm
- Efficacy (3K/4K/5K): 140 / 157 / 150 LPW
- Color Temperature: CCT Selectable (3000K / 4000K / 5000K)
- CRI: 83
- Voltage: 100-277V
- Ambient Temperature: -40°C to 45°C
- Surge Protection: 4kV
- Base Type: EX39
- Weight: 1.87 lbs
- Controls Option: No
