Description

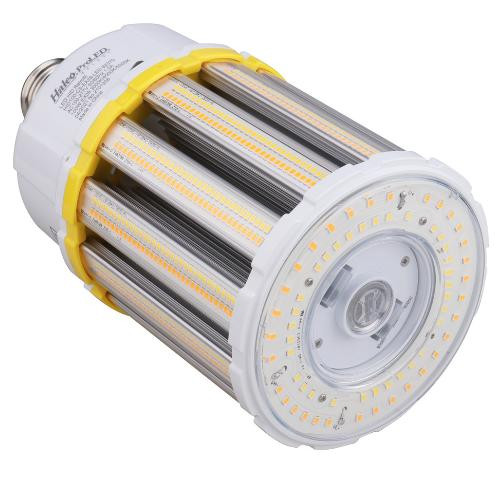

HID100-CS-EX39-LED High-Output LED Retrofit For High Bays And Area Lighting | CCT Selectable | Flexible Wattage
Designed to simplify upgrades of high-bay, post-top, and area luminaires, the Halco HO-82370 delivers selectable color temperature and high luminous efficacy to reduce energy use and maintenance while enabling fast, reliable retrofits into EX39 lamp holders.
KEY FEATURES:
- CCT Selectable: Choose 3000K, 4000K or 5000K on-site to match existing lighting and improve visual comfort.
- Wattage Flexibility: Wattage-selectable design (63/80/100W) lets installers optimize output and energy use for each application.
- High Efficacy: Up to 157 LPW (per table) for reduced energy consumption and lower operating costs.
- Robust Outdoor Performance: 100-277V operation with 6kV surge protection and wide ambient rating for reliable outdoor use.
- Retrofit Ready: EX39 base allows direct replacement of HID lamps for quick installation and minimal downtime.
APPLICATIONS:
- Ideal for replacing HID lamps in high-bay industrial facilities.
- Well suited for parking lot and post-top retrofits where high output is required.
- Excellent for area and site lighting upgrades seeking selectable CCT and efficiency.
- Installation Tip: Can be installed vertical or horizontal; motion sensor accessory available for 80W and 100W options.
SPECIFICATIONS:
- Wattage: 63 / 80 / 100 W (wattage selectable)
- Shipped Wattage: 100W (asterisk denotes shipped wattage)
- Lumens (63W): 3000K: 8,820 / 4000K: 9,891 / 5000K: 9,450
- Lumens (80W): 3000K: 11,200 / 4000K: 12,560 / 5000K: 12,000
- Lumens (100W): 3000K: 14,000 / 4000K: 15,700 / 5000K: 15,000
- Efficacy: 140 / 157 / 150 LPW (3K / 4K / 5K)
- Color Temperature: 3000K / 4000K / 5000K (CCT Selectable)
- CRI: 83
- Voltage: 100-277V
- Surge Protection: 6kV
- Base Type: EX39
- Weight: 3.5 lbs
- Ambient Temperature: -40°C to 45°C
- Controls: Motion sensor accessory available (controls option: Yes)
