Description

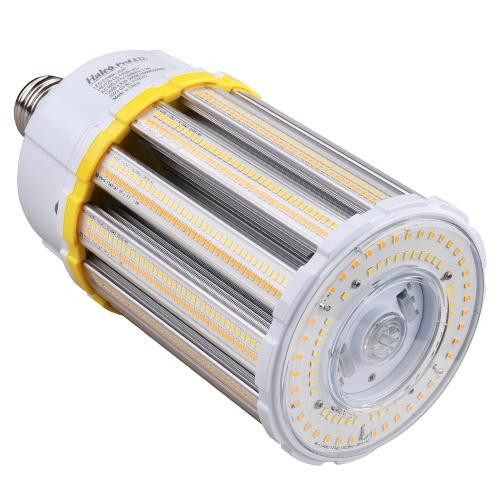

HID120-CS-EX39-LED High-Output HID Retrofit Lamp For Industrial And Outdoor Fixtures | CCT Selectable | Durable High Efficacy
Specifically designed to simplify retrofits of HID high bays, post-tops and area luminaires, this Halco HID120-CS-EX39-LED provides field-selectable color and wattage for fast, inventory‑friendly upgrades while delivering high lumens and reliable outdoor performance.
KEY FEATURES:
- Field‑Adjustable Color: CCT selectable 3000K / 4000K / 5000K for tailored white light in the field.
- Flexible Output: Wattage-selectable 80W / 100W / 120W reduces SKUs and adapts to mounting heights and application needs.
- High Efficacy: Delivers up to 157 LPW (per 4000K) for significant energy savings versus legacy HID.
- Direct Retrofit Base: EX39 base enables quick installation into existing HID sockets without new housings.
- Rugged Outdoor Ready: 6kV surge protection and wide -40°C to 45°C operating range for reliable outdoor performance.
APPLICATIONS:
- High-bay warehouses and industrial interiors.
- Parking lots, area and perimeter lighting.
- Post-top and pole-mounted outdoor luminaires.
- Tip: Install using ballast-bypass (Type B line‑connect) per the product installation instructions for safe retrofit operation.
SPECIFICATIONS:
- Wattage: Selectable 80W / 100W / 120W (Shipped at 120W)
- Lumens (80W): 11,200 (3000K) / 12,560 (4000K) / 12,000 (5000K)
- Lumens (100W): 14,000 (3000K) / 15,700 (4000K) / 15,000 (5000K)
- Lumens (120W): 16,800 (3000K) / 18,840 (4000K) / 18,000 (5000K)
- Efficacy: 140 LPW (3000K) / 157 LPW (4000K) / 150 LPW (5000K)
- CRI: 83
- Color Temperature: 3000K / 4000K / 5000K (CCT Selectable)
- Voltage: 100-277V
- Surge Protection: 6kV
- Ambient Temperature: -40°C to 45°C
- Weight: 3.6 lbs
- Base Type: EX39
- Controls: Motion sensor accessory option available for 80W, 100W and 120W
