Description

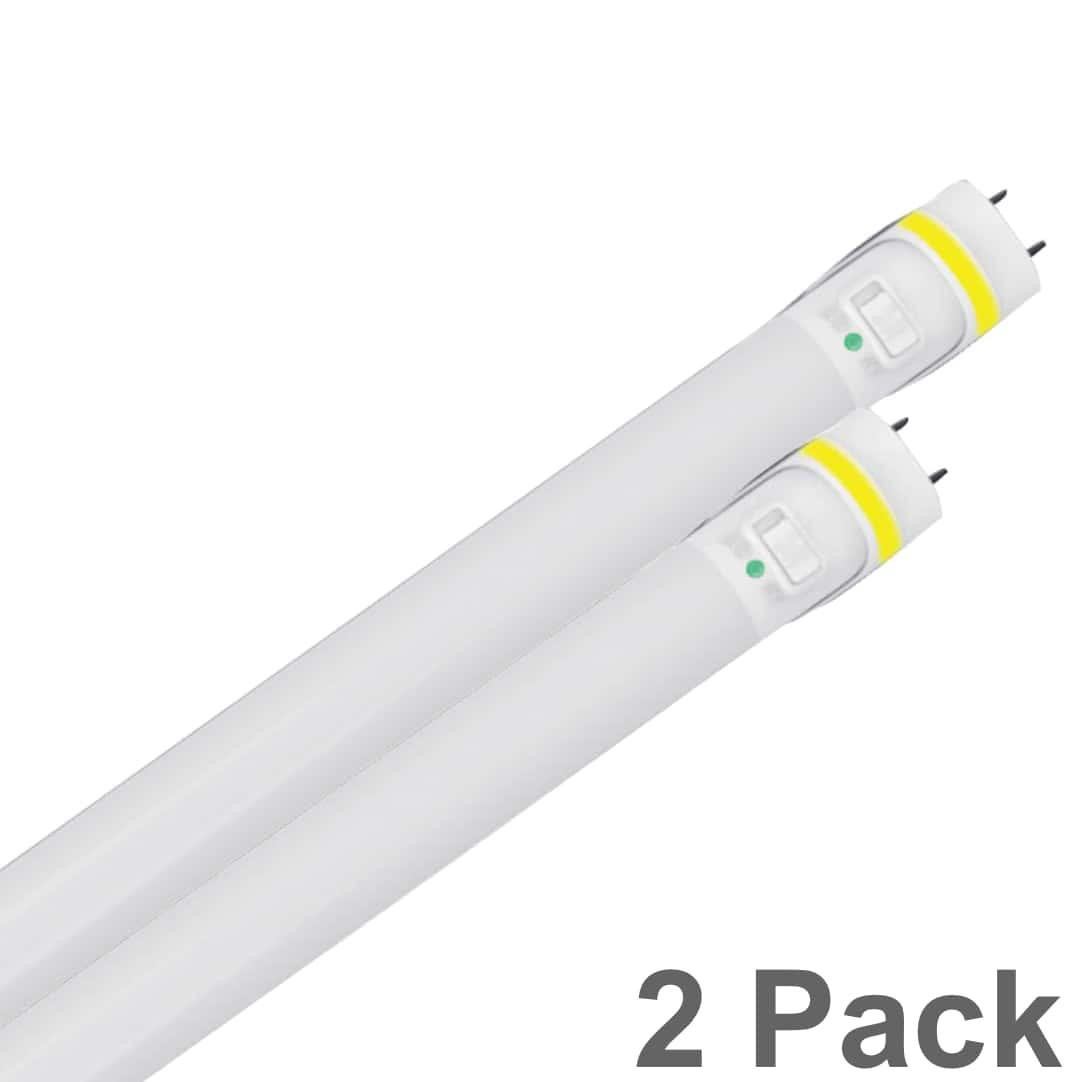

T8EM-48FR17-50BYP-LED-2PK LineConnect Emergency Ballast-Bypass 4-Foot T8 With Integrated Lithium Backup For Egress Lighting | Daylight (5000 K)
Engineered to simplify emergency lighting upgrades, this Halco ProLED 4ft ballast-bypass T8 combines consistent Daylight color with an integrated lithium backup to reduce maintenance and eliminate separate emergency fixtures.
KEY FEATURES:
- Integrated Backup: Built-in 3.5W 90-minute lithium battery provides 400 lumens of emergency output without separate fixtures.
- Reliable Illumination: 17W operation delivers 2,100 lumens of stable Daylight output for consistent egress lighting.
- Durable Construction: Polycarbonate and aluminum construction resists impact and extends service life.
- Simple Compatibility: Type B (Ballast Bypass) LineConnect design with G13 medium bi-pin base for direct-wired retrofit installs.
- Performance Ready: Triac dimming at 120V, >0.9 power factor, and listings including DLC 5.1 and UL for commercial applications.
APPLICATIONS:
- Ideal for stairwells and corridors requiring reliable emergency illumination.
- Well suited for commercial spaces and warehouses where integrated backup reduces downtime.
- Appropriate for retail or parking areas needing code-compliant egress lighting.
- Usage Tip: Use as a direct-replacement ballast-bypass tube to consolidate lighting and emergency functions into one lamp.
SPECIFICATIONS:
- Wattage: 17W
- Delivered Lumens: 2,100 lm
- Emergency Output: 400 lumens
- Beam Angle: 160°
- Battery: 3.5W 90 minute lithium battery (5 hour recharge)
- Color Temperature: 5000K
- CRI: >80
- L70 Lifetime (hrs): 50,000
- Voltage: 120-277V
- THD: <15%
- Power Factor: >0.9
- Dimming: Triac @ 120 volts
- Base Type: G13 medium bi-pin
- Construction: Polycarbonate and Aluminum Construction
- Operating Temperature: 0°C to 40°C
- Listings: DLC 5.1, UL, UL verified, RoHS
- Warranty: 5 Years
- Pack Quantity: 2 (Inner Sellable)
