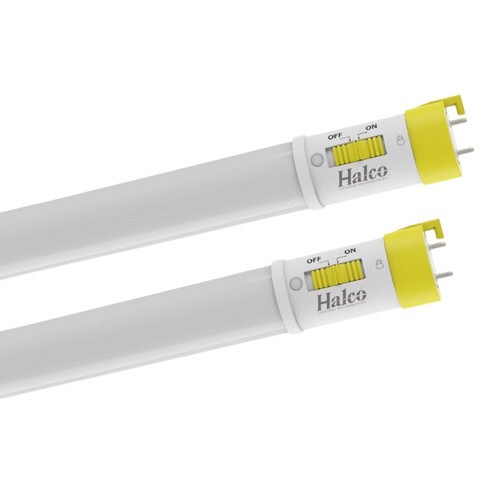

T8EM-48FR16-CSBYP-LED-UL924-2PK Emergency T8 Type B LED Tube | CCT Selectable With 90-Min Integrated Battery | NSF Rated For Foodservice
Designed to streamline emergency lighting upgrades, this Halco LED T8 emergency tube combines field-selectable color temperatures and lumen levels with an integrated 90-minute UL924 battery, reducing installation time and eliminating the need for separate emergency fixtures in commercial and foodservice environments.
KEY FEATURES:
- Dual-Mode Operation: Type B ballast-bypass design provides normal LED illumination and automatic emergency operation when power is interrupted.
- Field Selectable CCT & Wattage: Choose from 3000K, 3500K, 4000K, 5000K or 6500K and 12W/14W/16W power levels to match fixture and application needs.
- Integrated Emergency Battery: Built-in lithium battery delivers 90 minutes of emergency light at 500 lumens for life-safety compliance.
- Dimmable in Normal Mode: Triac dimmable at 120V for adaptable ambient control.
- NSF & UL924 Listed: NSF food safety rating and UL924 listing support use in regulated foodservice and life-safety installations.
APPLICATIONS:
- Commercial and retail spaces requiring reliable emergency illumination.
- Food processing and foodservice areas where NSF-rated products are required.
- Healthcare and educational facilities needing integrated emergency backup.
- Usage Tip: Install with ballast bypass wiring per manufacturer instructions for proper Type B operation.
SPECIFICATIONS:
- Manufacturer: Halco Lighting Technologies
- UPC: 807154823864
- Length: 48in
- Bulb Type: T8
- Base Type: Medium Bi-Pin (G13)
- Wattage: Selectable 12W, 14W or 16W
- Lumens: 1500-2200
- Emergency Output: 500 lumens
- Color Temperature: CCT Selectable (3000K/3500K/4000K/5000K/6500K)
- CRI: 80
- Voltage: 120-277V
- Dimmable: Yes (Triac)
- Average Life: 50,000 hours
- Beam Angle: 160°
- Warranty: 5 years
- Operating Temp: -20°C to 45°C
- Power Factor: 0.9
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: UL Listed, UL924 Emergency Listed
- Ratings: NSF Rated, DLC 5.1 Qualified, RoHS Compliant, Suitable for Damp Locations
- Packaging: Sold as a 2-pack (Inner Pack: 2)
