Description

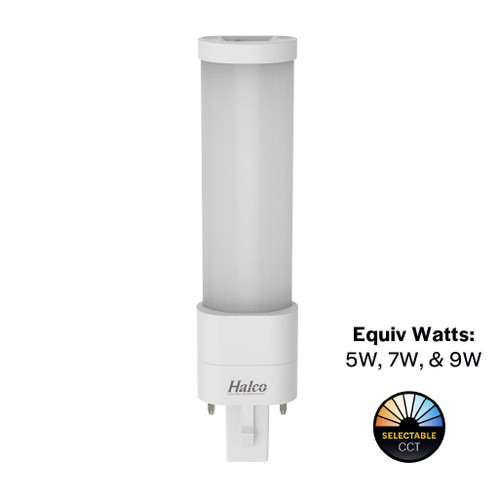

PLS3H-8CS-HYB-G23-LED2 G23 Horizontal Plug-In Lamp | CCT Selectable With Type A/B Hybrid Operation For Commercial Retrofits
Designed for fast, low-maintenance upgrades in commercial and institutional settings, this Halco ProLED Select plug-in lamp delivers efficient directional light while offering four user-selectable color temperatures to match any space. Its hybrid Type A/B design simplifies retrofit options by working with existing magnetic ballasts or as a ballast-bypass lamp, reducing installation time and inventory complexity.
KEY FEATURES:
- Hybrid Operation: Type A/B compatibility enables use with magnetic ballasts or direct-wired bypass installations for versatile retrofits.
- CCT Selectable: Choose from 3000K, 3500K, 4000K, or 5000K to tailor ambiance and task illumination.
- Low Energy: Consumes just 3.5W (approx. 7W CFL equivalent) for reduced utility costs.
- Long Life: Rated for 50,000 hours to cut maintenance and replacement frequency.
- Horizontal Output: Directional beam and frosted lens provide consistent, glare-controlled illumination in horizontal fixtures.
APPLICATIONS:
- Ideal for offices, retail displays, and healthcare facilities seeking efficient plug-in lamp replacements.
- Well suited for schools, hospitality, and other institutional retrofits where ballast compatibility reduces downtime.
- Perfect for horizontal single-tube fixtures and accent or under-shelf lighting that require a G23 2-pin base.
- Usage Tip: For ballast-bypass installations, follow local wiring codes and verify compatibility before retrofitting.
SPECIFICATIONS:
- Wattage: 3.5W
- Lumens: 360 / 370 / 380 / 400
- Color Temperature: 3000K, 3500K, 4000K, 5000K
- CRI: 80
- Base Type: G23 (2-Pin)
- Voltage: 120-277V
- Beam Angle: 120 Degrees
- Average Life: 50,000 hours
- Dimmable: No
- Power Factor: 0.9
- Operating Position: Horizontal
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed; RoHS Compliant; NSF Rated
- Environment Rating: Suitable For Damp Locations; IP20
- Packaging: Sold Individually; Inner Pack 6; Master Carton 24
