Description

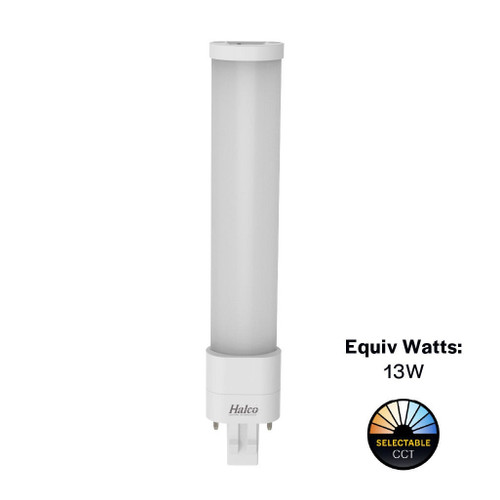

PLS5H-8CS-HYB-GX23-LED2 Commercial GX23 Plug-In Lamp With Selectable Warm White To Daylight Tones For Office Retrofits
Halco's ProLED Select PLS5H series provides a fast, low-maintenance upgrade for commercial and institutional spaces. This GX23 horizontal plug-in lamp offers four selectable white tones and hybrid compatibility to simplify retrofits while reducing energy use and upkeep.
KEY FEATURES:
- Hybrid Compatibility: Type A/B hybrid design works with magnetic ballasts or as a ballast bypass for flexible retrofit options.
- Selectable Color Temperatures: Four user-selectable tones let installers choose Warm White to Daylight for optimal visual comfort.
- Low Energy Use: Consumes only 5.5W while replacing a 13W CFL equivalent for immediate energy savings.
- Long Life: 50,000-hour rated life cuts maintenance frequency in high-use commercial areas.
- Compact Horizontal Design: GX23 2-pin base and horizontal operating position for direct replacement of single-tube plug-in CFLs.
APPLICATIONS:
- Ideal for office ceiling grids and troffers requiring horizontal plug-in lamps.
- Well suited for retail displays and hospitality back-of-house lighting.
- Good choice for healthcare and education facilities seeking consistent, selectable whites.
- Installation Tip: Install in the horizontal GX23 socket and select the desired color temperature on the lamp before energizing for best results.
SPECIFICATIONS:
- Wattage: 5.5W
- Lumens: 580 / 590 / 600 / 620
- Color Temperature: Selectable 3000K, 3500K, 4000K, 5000K
- CRI: 80
- Voltage: 120-277V
- Base Type: GX23 (2-Pin)
- Lifespan: 50,000 hours
- Beam Angle: 120 Degrees
- Dimmable: No
- Amps: 0.05
- Input Frequency: 60Hz
- Power Factor: 0.9
- Operating Position: Horizontal
- Warranty: 5 years
- Housing Material: Polybutylene Terephthalate (PBT) plastic
- Base Material: Copper
- Environment Rating: Suitable for Damp Locations (IP20)
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed; RoHS Compliant; NSF Rated
- Packaging: Sold Individually; Inner Pack: 6; Master Carton: 24
