Description

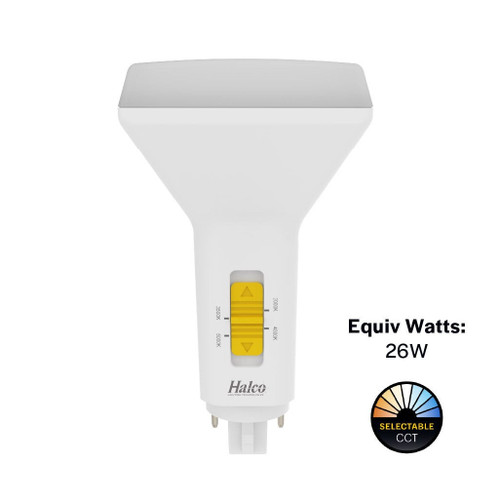

PLD9V-8CS-DIR-G24Q-LED2-D Vertical Dual-Tube LED Plug-In Lamp | Type A Ballast-Compatible Retrofit For Commercial Office
Halco’s ProLED Select double-tube plug-in lamp simplifies commercial retrofits by replacing 26W CFLs with a 9.5W LED solution that reduces energy use and maintenance. The lamp supports vertical mounting, selectable color temperatures, and compatibility with existing ballasts for fast, low-disruption installs.
KEY FEATURES:
- Ballast-Compatible Type A: Plug-and-play installation with compatible electronic ballasts to speed retrofits.
- Selectable Color Temperatures: Four settings (3000K, 3500K, 4000K, 5000K) to match workspace needs.
- Low Power Draw: 9.5W replaces 26W CFLs for immediate energy savings.
- 0-10V Dimmable: Integrates with dimming controls for improved occupant comfort and additional savings.
- Long Life: Rated 50,000 hours to cut maintenance and replacement cycles.
- Vertical Output Design: Optimized for fixtures that require vertical lamp orientation.
APPLICATIONS:
- Ideal for office ceiling grids, retail fixtures, and healthcare facility lighting.
- Perfect for educational and hospitality retrofits seeking energy and maintenance reductions.
- Well-suited to replace 26W CFL plug-ins in troffers and recessed fixtures.
- Usage Tip: Install in compatible electronic ballasts per Type A guidance for best performance and DLC compliance.
SPECIFICATIONS:
- Wattage: 9.5W
- Lumens: 1080 / 1100 / 1120 / 1150
- Base Type: G24Q (4-Pin)
- Color Temperature: Selectable 3000K, 3500K, 4000K, 5000K
- CRI: 80
- Voltage: 120-277V
- Dimmable: Yes (0-10V)
- Average Life: 50,000 hours
- Operating Position: Vertical
- Power Factor: 0.9
- Beam Angle: 120 Degrees
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- DLC: DLC 5.1 Standard (Type A Only)
- UL Listed: Yes
- Location Rating: Suitable For Damp Locations
- RoHS: Yes
