Description

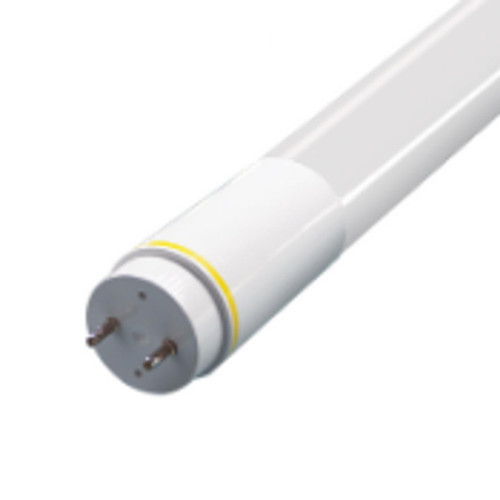

T824FR7/850/BYP4/DSE/LED High-Efficiency 2' T8 LED Replacement | Daylight (5000 K) | Type B Bypass, Double/Single-End Power
Designed for fast, ballast-free retrofits in commercial and retail spaces, this 2' ProLED T8 bypass lamp cuts maintenance and delivers instant, uniform Daylight illumination while operating on single- or double-ended line voltage.
KEY FEATURES:
- Ballast-Free Retrofit: BYP4 Type B design eliminates external ballasts for straightforward installation.
- Flexible Installation: DSE (Double/Single-End) power wiring accommodates varied fixture wiring methods.
- Low Energy Use: 7W lamp delivers 1000 lumens to reduce energy consumption versus linear fluorescents.
- Robust Output: 83 CRI and Daylight CCT provide bright, color-accurate illumination for task areas.
- Long Life: L70 >50,000 hours minimizes replacements and maintenance downtime.
APPLICATIONS:
- Ideal for office ceiling troffers and grid fixtures.
- Suitable for retail display aisles and shelving illumination.
- Well suited for hospitality common areas and back-of-house spaces.
- Usage Tip: Ensure proper bypass wiring per installation instructions for Type B operation.
SPECIFICATIONS:
- Wattage: 7W
- Lumens: 1,000
- Color Temperature: 5000K
- CRI: 83
- Voltage: 120-277V
- Base Type: Medium Bi Pin
- Useful Life: 50,000
- Beam Spread: 160
- Package Quantity: 25
- Max Overall Length (MOL): 24"
- Power Factor: 0.98
- Equivalent Wattage: 17
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: cUL Approved for Damp Locations; ETL Sanitation Certificate; DLC 5.0 Qualified.
- Installation Note: Thermal limitation will turn the lamp off if a ballast is left connected; suitable for totally enclosed fixtures as noted.
