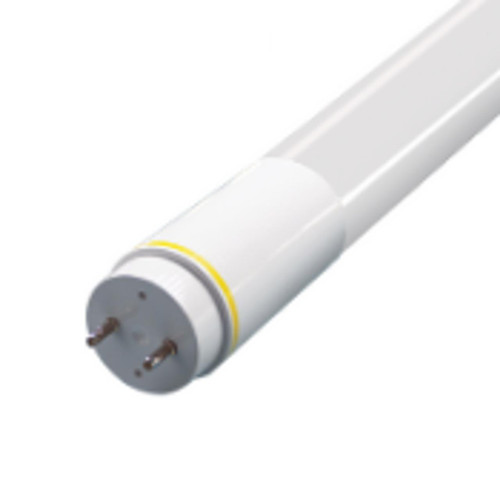

T836FR12/835/BYP4/DSE/LED High-Efficiency 3-Foot LED T8 Replacement Tube For Ballast-Bypass Retrofit | Soft White
Specifically designed to simplify ballast-free retrofits, this Halco ProLED 3' T8 replacement delivers dependable, energy-saving illumination and fast single or double-ended wiring installation to reduce downtime and maintenance costs.
KEY FEATURES:
- Ballast-Free Retrofit: BYP4 design enables direct line-voltage operation without a ballast for simplified installations.
- High Output: Produces 1,450 lumens from a 12W tube, improving light levels while lowering energy use versus fluorescent equivalents.
- Long Life: Rated for 50,000 hours of useful life to minimize maintenance and lamp replacements.
- Wide Voltage Range: Operates across 120-277V for flexible installation in varied electrical systems.
APPLICATIONS:
- Ideal For Office Lighting Retrofits In Grid Ceilings And Surface Fixtures.
- Well-Suited For Retail Environments Seeking Consistent, Glare-Controlled Illumination.
- Great For Warehouse And Utility Areas Requiring Durable, Long-Life Tubes.
- Installation Tip: Use single- or double-ended wiring per wiring diagram to ensure safe ballast bypass conversion.
SPECIFICATIONS:
- Wattage: 12W
- Lumens: 1,450
- Color Temperature: 3500K
- CRI: 83
- Voltage: 120-277V
- Base Type: Medium Bi Pin
- Useful Life: 50,000 hours
- Beam Spread: 160°
- Power Factor: 0.98
- MOL: 36"
- Package Quantity: 25
- Equivalent Wattage: 25
- Product Code: T836FR12/835/BYP4/DSE/LED
- Product #: 84875
