Description

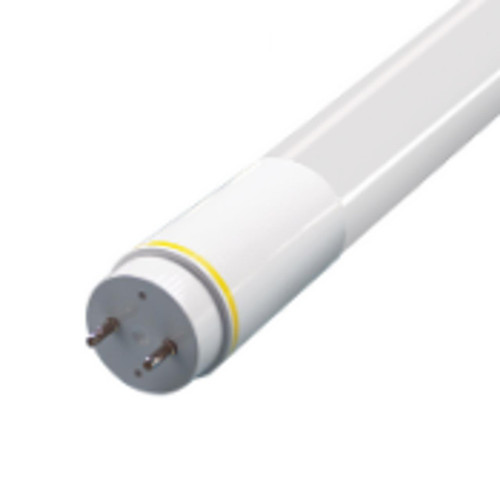

T836FR12/840/BYP4/DSE/LED 36-Inch T8 Bypass LED Replacement Tube | Cool White | Retrofit Friendly Single Or Double End Wiring
Designed for fast, low‑cost retrofits, this Halco 36-inch T8 bypass tube (HO-84876) reduces maintenance and energy use by delivering bright, consistent Cool White illumination while allowing simple single or double-ended line-voltage installation.
KEY FEATURES:
- Ballast-Free Bypass: BYP4 design eliminates the need for an external ballast, simplifying retrofits and lowering maintenance.
- Flexible Wiring: DSE configuration supports single or double-ended line-voltage connections for installer convenience.
- Wide Voltage Range: Operates on 120-277V for broad compatibility across commercial fixtures.
- High-Quality Light: 1,500 lumens at 83 CRI provide clean, neutral Cool White output suitable for general illumination.
- Long Life: Rated for long useful life (50,000 hours) to reduce replacement frequency and service costs.
APPLICATIONS:
- Ideal for office and commercial ceiling troffers seeking energy savings and reduced maintenance.
- Well-suited for retail fixtures and display lighting where consistent color and brightness matter.
- Appropriate for educational and institutional corridors, classrooms, and common areas.
- Installation Tip: Remove or bypass existing ballast and wire for single or double-ended line voltage per local code.
SPECIFICATIONS:
- Wattage: 12W
- Lumens: 1,500
- Color Temperature: 4000K
- CRI: 83
- Voltage: 120-277V
- Base Type: Medium Bi Pin
- Length (MOL): 36"
- Useful Life: 50,000 hours
- Beam Spread: 160
- Power Factor: 0.98
- Equivalent Wattage: 25
- Package Quantity: 25
