Description

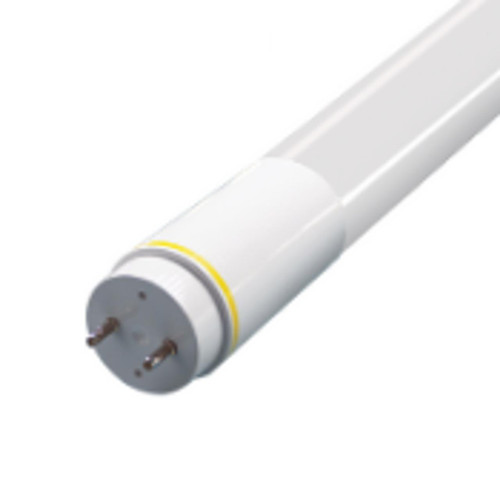

T836FR12/850/BYP4/DSE/LED High-Efficiency 36-Inch T8 LED Bypass Tube | Daylight (5000 K) | Type B DSE Wiring, Retrofit Friendly
Designed for fast fluorescent-to-LED upgrades, this 36" T8 bypass tube delivers bright Daylight output while enabling single- or double-ended line-voltage installation to reduce fixture downtime and lower energy and maintenance costs.
KEY FEATURES:
- Simple Retrofit: Supports single- or double-ended (DSE) line-voltage wiring for quick ballast-bypass upgrades.
- High Output: Produces 1,550 lumens at just 12W for strong illumination with reduced energy use.
- Long Life: L70 rated 50,000 hours to minimize replacements and maintenance.
- Quality Light: 83 CRI provides accurate color rendering for general lighting environments.
- Wide Voltage Range: Operates on 120-277V for flexible installation across common commercial circuits.
APPLICATIONS:
- Ideal for office and retail linear fixtures.
- Well suited for hallways and utility rooms in commercial buildings.
- Appropriate for schools and healthcare facility corridors.
- Usage Tip: Install as a ballast-bypass lamp wired single- or double-ended per fixture wiring requirements.
SPECIFICATIONS:
- Product Code: T836FR12/850/BYP4/DSE/LED
- Product #: 84877
- Wattage: 12W
- Lumens: 1,550
- Efficacy / PF: PF 0.98
- Color Temperature: 5000K
- CRI: 83
- Voltage: 120-277V
- Base Type: Medium Bi Pin
- Length (MOL): 36"
- Beam Spread: 160°
- Useful Life: 50,000
- Package Quantity: 25
- Equivalent Wattage: 25W
