Description

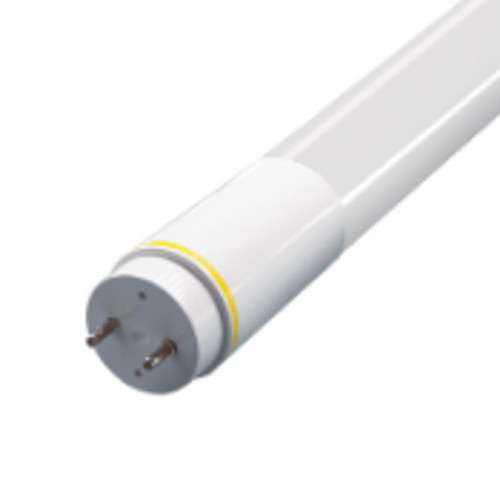

T848FR12/865/BYP4/DSE/LED High-Output 48-Inch T8 LED Replacement | Bright Daylight (6500 K) | Type B Bypass Double/Single-Ended
Designed for fast 4-foot tube retrofits, the Halco HO-84889 ProLED T8 replaces fluorescent T8 lamps with a 12.5W, line-voltage LED solution that reduces maintenance and delivers bright, high-contrast Bright Daylight illumination while supporting single- or double-ended wiring.
KEY FEATURES:
- Fast Retrofit: Supports single- or double-ended (DSE) line-voltage wiring for simple ballast bypass installations.
- High Output: 12.5W tube delivers 1,650 lumens in Bright Daylight for strong task illumination.
- Long Life: L70 >50,000 hours to minimize replacements and maintenance downtime.
- Safe Operation: Thermal limitation turns the lamp off if a ballast is left connected, reducing miswiring risks.
- Damp-Rated & Qualified: cUL approved for damp locations and DLC 5.0 qualified for energy programs.
APPLICATIONS:
- Ideal for retail display aisles, commercial office troffers, and school corridors.
- Perfect for warehouses, break rooms, and other general-area lighting where bright, cool light is needed.
- Well-suited for renovation projects replacing fluorescent T8 tubes in ceiling fixtures.
- Usage Tip: Install with ballast removed and follow the DSE bypass wiring instructions for safe Type B operation.
SPECIFICATIONS:
- Product Code: T848FR12/865/BYP4/DSE/LED
- Product #: 84889
- Wattage: 12.5W
- Lumens: 1,650
- Color Temperature: 6500K
- CRI: 83
- Voltage: 120-277V
- Base Type: Medium Bi Pin
- Useful Life: 50,000 hours
- Beam Spread: 160°
- Package Quantity: 25
- Maximum Overall Length (MOL): 48"
- Power Factor: 0.98
- Equivalent Wattage: 32W
