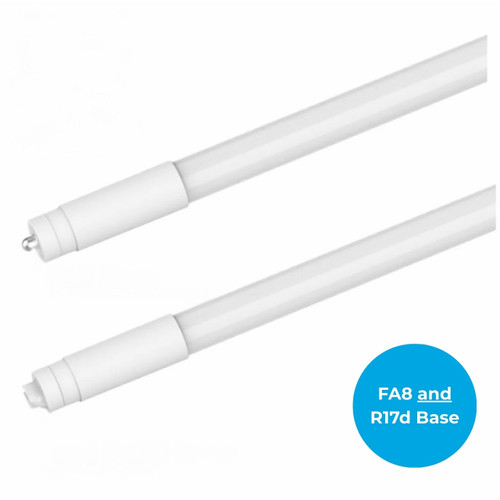

96T8-40-840-DE-BYP3-LED 8ft T8 LED Tube | 4000K Cool White | Type B Double-Ended Bypass | FA8 and R17D End Caps
Upgrade long runs and high-ceiling aisles with a durable 8-foot LED tube that replaces fluorescent 96-inch T8s. This lamp uses double-ended ballast-bypass wiring for straightforward retrofits, delivers bright neutral white light, and includes changeable FA8 and R17D endcaps to match your existing sockets.
KEY FEATURES:
- Fast Retrofits: Double-ended Type B bypass simplifies installation and reduces labor.
- High Output: 5500 lumens at just 40W for efficient, uniform illumination.
- Flexible Sockets: Includes FA8 and R17D endcaps to fit common 8-foot fixtures.
- Commercial Grade: 120-277V operation with 50,000-hour rated life.
- Consistent Color: 4000K neutral white supports comfortable visibility.
APPLICATIONS:
- Warehouses and storage aisles seeking long, bright runs.
- Signage and backlit displays needing uniform illumination.
- Industrial and utility areas where maintenance cycles must be minimized.
SPECIFICATIONS:
- Wattage: 40 Watt
- Lumens: 5500 lm
- Efficacy: 138 LPW
- Color Temperature: 4000K
- CRI: 82
- Voltage: 120-277V
- Base Type: FA8 or R17D (changeable endcaps)
- Beam Angle: 210°
- Lifespan: 50,000 hours (L70)
- Dimmable: No
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety/Compliance: cULus, NSF, RoHS, FCC
- DLC 5.1 Standard: FA8 base only
- Location Rating: Damp
- Warranty: 5-year limited warranty
