Description

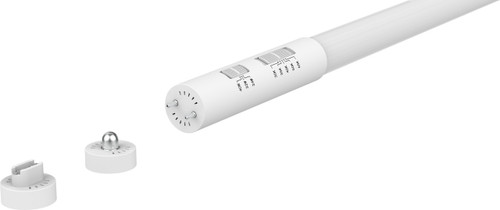

96T8-40S-8CS-DE-BYP3-LED 8-Foot LED T8 Tube | Switchable 3000K-6500K Color Temps | Type B Ballast Bypass with Adjustable Output
The Halco ProLED 87226 lamp is engineered for maximum flexibility, offering both color temperature and lumen output selectability. Designed as an energy-efficient replacement for outdated fluorescent tubes, it provides a versatile lighting solution for a range of commercial and industrial applications while reducing maintenance needs with its long service life.
KEY FEATURES:
- Adjustable Output: Select from 24W, 32W, or 40W settings to match brightness needs.
- CCT Selectable: Switch between 3000K, 3500K, 4000K, 5000K, and 6500K for tailored ambiance.
- Energy Efficient: Provides up to 146 lumens per watt for cost-effective operation.
- Reduced Upkeep: Rated for 50,000 hours, minimizing replacement and service cycles.
- Installation Ready: Double-ended bypass design with included FA8 and R17D end caps.
APPLICATIONS:
- Commercial ceiling grids requiring adjustable lighting levels.
- Warehouses and industrial facilities where tailored brightness improves efficiency.
- Retail and signage displays needing flexible color options.
SPECIFICATIONS:
- Wattage: Selectable 24W / 32W / 40W
- Lumens: 3,500 / 4,400 / 5,500
- Efficacy: 130–146 LPW
- Color Temperature: 3000K / 3500K / 4000K / 5000K / 6500K
- CRI: 82
- Voltage: 120-277V
- Base Type: FA8 and R17D
- Shape: 8-Foot T8 Tube
- Lifespan: 50,000 hours
- Dimmable: No
- Beam Angle: 210°
- Operating Temperature: -20°C to 45°C
- Power Factor: 0.95
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus, DLC 5.1 Standard, NSF
- Compliance: FCC Part 15, RoHS Compliant
- Location Rating: Suitable for damp locations
- Warranty: 5-year limited warranty
