Description

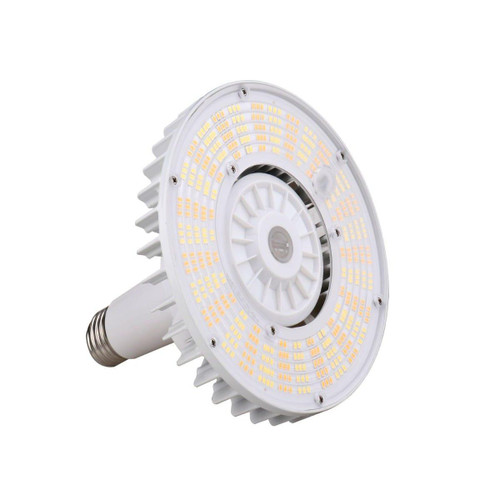

HRSL-1-WS-CS-U-EX39 Highbay LED Retrofit For HID Fixtures With Type B Ballast Bypass | CCT Selectable | Retrofit Friendly
Designed for fast conversion of legacy HID highbays, this Halco HRSL-1 retrofit lamp enables field-selectable wattage and color temperature so installers can optimize light output and color on-site while cutting energy use and maintenance.
KEY FEATURES:
- Field Selectable: Choose 70/80/90W and 3000K/4000K/5000K on-site to match mounting height and task requirements.
- Direct Wire (Type B): Ballast bypass installation for straightforward conversion to 120–277VAC mogul sockets (EX39).
- High Efficacy: Ultra-efficient performance reduces energy consumption while delivering HID-level light output.
- Controls Ready: Compatible with screwbase sensors, motion sensors and 0–10V dimming for occupancy and daylight control.
- Rugged Construction: Die-cast aluminum housing with polycarbonate lens and IP64 protection for demanding highbay environments.
APPLICATIONS:
- Warehousing and Distribution Centers.
- Manufacturing and Industrial Facilities.
- Gymnasiums and Large Indoor Sports Spaces.
- Tip: Ideal for replacing HID lamps in existing mogul-socket fixtures using ballast bypass wiring.
SPECIFICATIONS:
- Wattage: 70/80/90W
- Lumen Range: 10,683 - 14,130 Lumens
- CCT: 3000K / 4000K / 5000K
- Efficacy: 144 - 167 LPW
- CRI: > 80
- Voltage: 120-277VAC
- Amperage: 120VAC (0.75A), 277VAC (0.32A)
- Base Type: EX39 (Mogul)
- Dimming: Yes, 0-10V continuous
- Surge Protection: 6kV
- L70 Lifetime: 50,000 hours
- Operating Temperature: -40°C to 50°C
- Housing / Lens: Die-Cast Aluminum & Polycarbonate
- Listings: UL, DLC 5.1, IP64
- Environment: Rated for enclosed fixtures & damp locations
- Weight: 3.219 lb
- Warranty: 5 Years
