Description

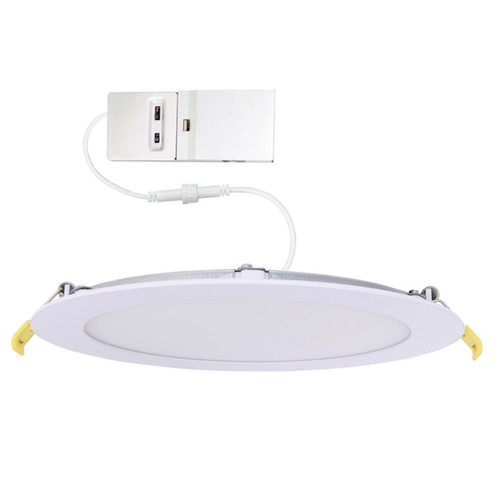

CSDL-8-LS-CS-ST-DDV Versatile Slim LED Downlight | Recessed Retrofit Fixture for Wet Location Ceilings | 8-Inch Aperture
Upgrade large commercial or hospitality spaces with the Halco 89170 Commercial Slim Downlight an advanced 8-inch recessed fixture offering both field-selectable color temperature and lumen output. This canless, remote driver design streamlines installation, making it an ideal solution for both renovations and new construction in tight plenum areas. Enjoy a modern, glare-reducing edge-lit look with simple dimming and robust long-term performance.
KEY FEATURES:
- One Fixture, Five Colors: Instantly select from warm to daylight tones (2700K€€œ5000K) with the onboard switch.
- Flexible Output: Lumen selectability (1100/1230/1500 lm) tailors brightness for any room size.
- All-in-One Dimming: Easily integrates with TRIAC/ELV or 0-10V dimmers, reducing installation and inventory needs.
- Quick, Canless Install: Spring retention clips and plenum-rated driver box mount securely without extra housings.
- Safe for Any Space: Wet location, IC, airtight, and Energy Star rated for use in bathrooms, kitchens, or hallways.
- Consistent Clarity: High 90+ CRI ensures true-to-life colors in work and retail environments.
- Lasting Reliability: 50,000-hour rated life and 5-year warranty for reduced long-term costs.
APPLICATIONS:
- Excellent for offices, hotel corridors, and retail settings needing adaptable lighting.
- Ideal for properties upgrading to LED with existing plenum ceilings and minimal clearance.
- Tip: Use in wet-rated areas such as restrooms or entryways for safe, even illumination.
SPECIFICATIONS:
- Wattage: 18W
- Lumen Output: 1100/1230/1500 lm (selectable)
- Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K (selectable)
- CRI: 90+
- Beam Angle: 110°
- Efficacy: 91€€œ105 lm/W
- Voltage: 120€€œ277V, 50/60Hz
- Dimming: TRIAC/ELV & 0-10V down to 10%
- Ceiling Cutout: 8-4/16"
- Housing: Aluminum, smooth trim
- Lens: PMMA diffuser
- Lifespan: 50,000 hours (L70)
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: cETLus, FCC, RoHS, Energy Star, Title 24, Air Tight, IC Rated, JA8
- Location Rating: Wet location, airtight, IC rated
- Warranty: 5-year limited warranty
