Description

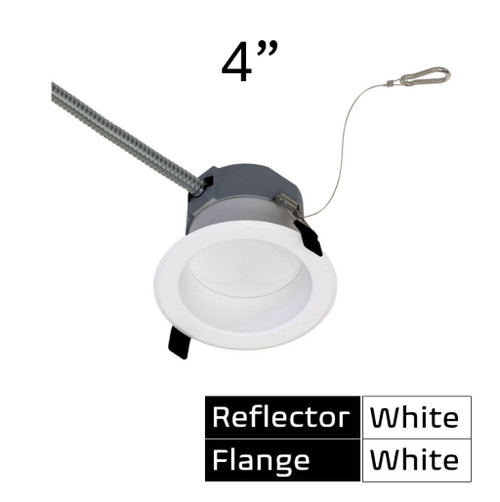

CDL-4-LS-CS-WH-DDV Commercial 4in Downlight | Selectable Color And Lumen Options With Triac/0-10V Dimming For Wet Locations
Engineered for fast commercial retrofits, the Halco CDL-4 series delivers flexible, high-quality illumination for offices, retail, and institutional spaces. Installers and facility managers benefit from selectable lumen and color settings, universal 120-277V operation, and dual dimming compatibility to ensure a smooth upgrade without rewiring or ballast concerns.
KEY FEATURES:
- Selectable Output & Color: Choose lumen outputs (600/800/1000) and color temperatures on-site for tailored illumination.
- Dual Dimming Compatibility: Works with Triac/ELV phase-cut and 0-10V controls for broad dimming system support.
- Wet-Location Rated: IP65 rating enables use in wet environments and perimeter applications.
- Compact Retrofit Design: 4in low-profile housing with mouse-trap steel spring clips for can or canless installation.
- High Color Quality: 90 CRI for accurate color rendering in commercial settings.
APPLICATIONS:
- Ideal for office parks, commercial buildings, and retail ceiling retrofits.
- Suitable for schools, universities, and architectural building entrances requiring high CRI lighting.
- Great for maintenance facilities and big box retail where wet-location performance is needed.
- Installation Tip: Use the selectable settings to dial in color and lumen output after mounting to match adjacent fixtures.
SPECIFICATIONS:
- Wattage: 6W, 8W, or 10W
- Lumens: Selectable 600 / 800 / 1000
- Color Temperature: Selectable 2700K, 3000K, 3500K, 4000K, 5000K
- CRI: 90
- Voltage: 120-277V
- Dimmable: Yes (Triac/ELV or 0-10V)
- Size / Shape: 4in Round
- Beam Angle: 80° ± 10°
- Average Life: 50,000 hours
- Power Factor: 0.9
- Operating Temp Range: -20°C (-4°F) to 40°C (104°F)
- Finish / Trim: White Reflector with White Flange
- Lens: Diffused, Textured Polycarbonate
- Housing: Powder Coated Steel Reflector
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: ETL Listed, Energy Star Certified, FCC, Title 24, RoHS
- Environment Rating: Wet Location, IP65
- Packaging: Sold in Multiples of 1; Master Carton Size: 4
