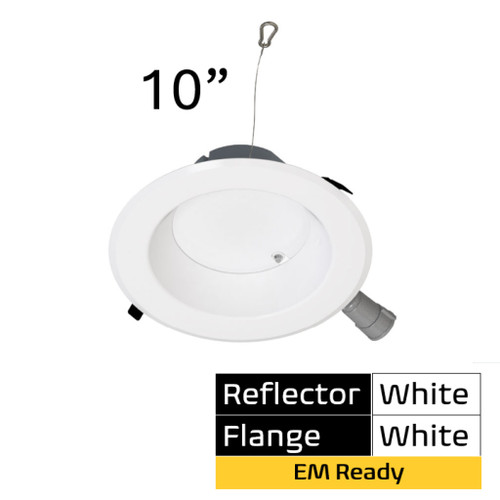

CDLEM-10-LS-CS-WH-DDV CCT Selectable 10in Downlight | IP65 Wet-Location, Emergency-Ready LED For Commercial Spaces
Engineered for fast commercial retrofits and new construction, the Halco CDLEM-10 delivers selectable lumen output and color temperature with integrated driver flexibility and emergency backup readiness to reduce downtime and simplify maintenance.
KEY FEATURES:
- Emergency-Ready: Quick-connect emergency battery backup ready with integrated test button and charging indicator (battery option sold separately: 89226).
- CCT & Output Selectable: Five color temperatures and multiple lumen levels allow field tuning for visual comfort and task-specific needs.
- Dual Dimming: Universal 120-277V driver supports 0-10V dimming and 120V TRIAC/ELV phase-cut for broad compatibility.
- Durable Outdoor Rating: IP65 wet-location rating and Energy Star listing for reliable performance in damp or exposed areas.
- Simple Installation: Mouse trap universal steel spring clips and can-or-canless mounting speed up retrofit installs.
APPLICATIONS:
- Ideal for offices, retail centers, and commercial building common areas.
- Perfect for schools, colleges, and maintenance facilities seeking high-CRI lighting.
- Suitable for architectural entrances and big-box retail with wet-location requirements.
- Installation Tip: Use the quick-connect battery cabling and universal clips for faster can or canless retrofits.
SPECIFICATIONS:
- Manufacturer: Halco Lighting Technologies
- Size: 10in
- Wattage: 25W, 35W or 38W
- Lumens: Selectable 2800, 3500, 4500
- Color Temperature: CCT Selectable (2700K, 3000K, 3500K, 4000K, 5000K)
- CRI: 90
- Voltage: 120-277V
- Dimmable: Triac/ELV and 0-10V
- Beam Angle: 80° ±10°
- Average Life: 50,000 hours
- Power Factor: 0.9
- Operating Temp Range: -20°C to 40°C (‑4°F to 104°F)
- Mount: Mouse Trap Universal Steel Spring Clips (Can or Canless)
- Finish: White reflector and white trim
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: ETL Listed, Energy Star, FCC, Title 24, RoHS
- Environment: IP65 Wet Location
- Emergency: Emergency battery backup ready (quick-connect); battery pack 89226 sold separately.
