Description

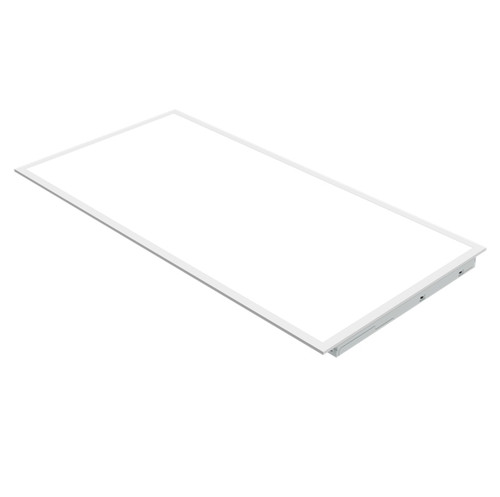

FPL-24-LS-CS-UNV-EM 2x4 LED Drop Ceiling Fixture | CCT Selectable Upgrade for Classrooms, Offices, and Retail Spaces
Transform commercial environments with Halco 90526 LED Flat Panel: a 2x4, CCT-selectable, lumen-adjustable fixture featuring built-in emergency battery backup. Designed for rapid upgrades in schools, offices, and retail settings, this panel delivers uniform lighting, simple in-ceiling installation, and operational reliability eliminating flicker and reducing downtime caused by power interruptions.
KEY FEATURES:
- Lumen & CCT Selectable: Adjust color (3500K, 4000K, or 5000K) and output (3750, 4375, or 5625 lumens) at install for tailored ambiance.
- Emergency Battery Backup: Ensures safe egress lighting during outages for enhanced facility safety.
- Quick-Connect Dimming: 0-10V dimming to 10% boosts energy savings and custom illumination.
- Hassle-Free Maintenance: Long 50,000-hour L70 life slashes replacement needs versus legacy fluorescent systems.
- Sleek, Modern Profile: Slim steel and aluminum body integrates easily into standard T-grid ceilings.
APPLICATIONS:
- Excellent for office ceilings, school classrooms, and retail shops seeking continuous and emergency illumination.
- Ideal in drop/grid ceilings where seamless, low-glare light is required with enhanced backup capability.
- Best used where compliance with energy savings and emergency egress codes is crucial.
SPECIFICATIONS:
- Fixture Size: 2' x 4'
- Wattage: Field Selectable (30W / 35W / 45W)
- Lumens: Field Selectable (3750 / 4375 / 5625)
- Efficacy: 125+ lm/W
- Color Temperature: 3500K, 4000K, 5000K Selectable
- CRI: 80+
- Beam Angle: 115°
- Voltage: 120-277V, 50/60Hz
- Power Factor: >0.9
- Dimming: 0-10V to 10%
- Lifespan (L70): 50,000 hours
- Housing: Steel/Aluminum Body with PMMA Lens
- Operating Temp: -20°C to 40°C
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: cETLus, FCC, Damp Location, IC Rated, DLC Premium
- IP Rating: IP20
- RoHS/FCC/TAA: Compliant
- Warranty: 5 Years
