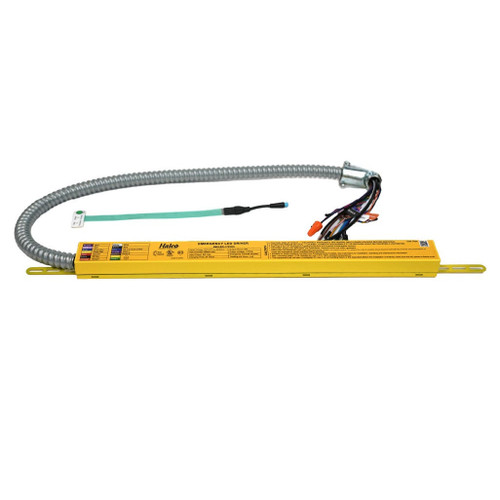

BBU-8W-170VDC Battery Backup Module For LED Flat Panels And Strips | 8W Lithium-Ion EM Driver With Test Switch, UL 924 Listed
Keep LED flat panels and strip fixtures illuminated during outages with the compact Halco BBU-8W-170VDC emergency module. Designed for easy integration inside slim housings, this unit delivers a reliable 8W of constant emergency power, a flat ribbon test switch for quick verification, and UL 924 listing for safe field or factory installation.
KEY FEATURES:
- Slim, Durable Construction: Painted steel housing with a low-profile design for discreet installation inside panels and strips.
- Reliable Emergency Power: Provides 8W of constant lithium-ion backup output for up to 90 minutes of emergency operation.
- Quick Testing: Integral flat ribbon test switch allows rapid verification of emergency function without disassembly.
- Fast Recharge: 24-hour recharge time to restore full standby capacity following an event.
- Flexible Wiring: Includes flex conduit/wiring for adaptable mounting and connection inside fixtures.
- Dimming Compatible: Works with 0-10V dimming control schemes where applicable.
- Long-Term Support: Backed by a 5-year warranty for dependable performance.
APPLICATIONS:
- Ideal for LED flat panels in offices where emergency egress lighting is required.
- Perfect for retail fixtures and display lighting to maintain visibility during power loss.
- Suitable for residential and commercial building strip fixtures requiring emergency backup.
- Installation Tip: Mount the module using the side extensions and route flex conduit for a secure, code-compliant fit; suitable for field or factory install.
SPECIFICATIONS:
- Backup Output: 8W constant power
- Battery Type: Lithium Ion
- Backup Duration: Up to 90 minutes
- Recharge Time: 24 hours
- Warranty: 5 years
- Min Operating Temp: 5C (41F)
- Max Operating Temp: 50C (122F)
- Finish: Yellow
- Housing Material: Steel with flex conduit
- Environment Rating: Dry Location
- Sold In Multiples Of: 1
- Weight Per Item: 0.5 lbs
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL 924 Listed
- Regulatory: CEC Title 20, FCC, RoHS
- Code References: NFPA 101, NFPA 70
- Installation: Listed for field or factory installation; use side extensions to attach to fixture housings.
