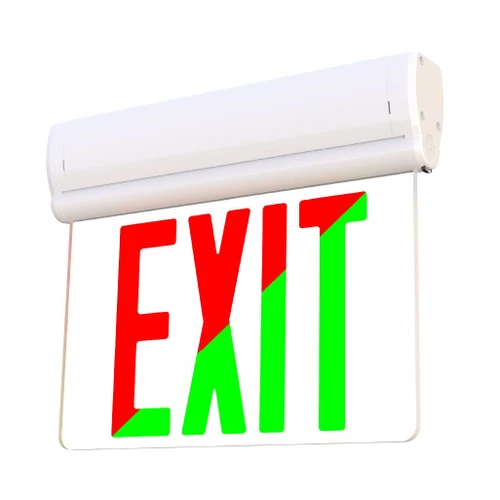

EMG-EDG-PL-RG Field-Configurable LED Exit Sign For Commercial Buildings | Red Or Green Legend, Single/Double Face, Universal Mounting
The Halco EMG-EDG-PL-RG offers a flexible, code-compliant exit solution that simplifies installation and reduces maintenance in commercial corridors, stairwells, and retail spaces. Its field-configurable legend color and mounting options, combined with an integrated 90-minute LiFePO4 emergency backup, ensure reliable egress illumination during power outages.
KEY FEATURES:
- Field-Configurable Legend: Selectable Red or Green applique legend to meet site or code preferences.
- Versatile Mounting: Includes canopy and cross bar for ceiling, wall, or end mounting; pivoting housing adapts to surface or top mount installs.
- Integral Emergency Backup: 90-minute LiFePO4 battery with test button and charging indicator for dependable life-safety operation.
- Durable Construction: Pivoting injection-molded thermoplastic housing with tool-less replaceable acrylic panel and applique chevrons.
- Field Selectable Face: Configure single- or double-face installation in the field for installation flexibility.
APPLICATIONS:
- Ideal for commercial hallways, stairwells, and retail storefronts requiring reliable egress signage.
- Well suited for schools, healthcare facilities, office buildings, and multi-family common areas.
- Works in hospitality and convenience store locations where flexible mounting and legend color are needed.
- Installation Tip: Use the included canopy and cross bar for fast ceiling-to-wall conversions and rotate the acrylic panel to set wall or ceiling orientation.
SPECIFICATIONS:
- Product Code: EMG-EDG-PL-RG
- Color Legend: Selectable Red or Green
- Technology: LED
- Emergency Backup: 90-minute LiFePO4 battery (Test Button & Charging Indicator)
- Voltage: 120-277V
- Dimmable: No
- Average Life: 100,000
- Warranty (Years): 2
- Power Factor: 0.9
- Operating Temp: Min 5C (41F), Max 50C (122F)
- Mount Included: Yes - Canopy, Cross Bar, Screws, Wire Nuts
- Finish: White
- Housing Material: Pivoting Injection Molded Thermoplastic
- Weight Per Item: 2.3 lbs
- Master Carton Qty: 6
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: UL 924 Damp Location Listed - NFPA 101 - NFPA 70 - CEC T20
- Location Rating: Suitable For Damp Locations
