Description

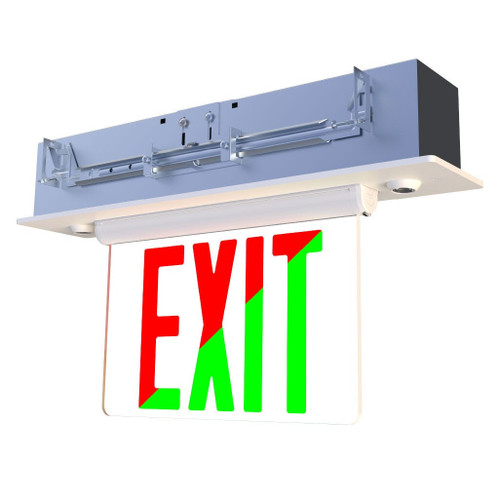

EMG-EDGC-PL-RG Field-Configurable Edgelit Exit Sign For Recessed Or Wall Mount Applications With LiFePO4 Emergency Battery
Designed for code-compliant egress lighting in corridors, stairwells, and commercial spaces, this Halco Emergence edgelit combo unit simplifies installation with field-selectable options and reliable emergency illumination backed by an integrated LiFePO4 battery.
KEY FEATURES:
- Field Configurable: Selectable Red or Green legend with single- or double-face installation.
- Integrated Emergency: 90-minute LiFePO4 backup battery with test button and charging indicator.
- Adjustable Optics: Two pivoting emergency heads providing 480 lumens total at 1.5W.
- Versatile Mounting: Pivoting acrylic panel for recessed ceiling or wall mount; bar hangers included.
- Durable Construction: Injection-molded thermoplastic face with galvanized recessed box and rotating acrylic lens.
APPLICATIONS:
- Ideal for schools, healthcare facilities, and office buildings.
- Well suited for retail corridors, multi-family common areas, and stairwells.
- Perfect for commercial entrances and service corridors requiring reliable egress signage.
- Usage Tip: Rotate the acrylic panel 90° to convert between ceiling and wall mounting during installation.
SPECIFICATIONS:
- Manufacturer: Halco
- Wattage: 1.5W
- Lumens: 460
- Color: Selectable Red or Green
- Voltage: 120-277V
- Dimmable: No
- Average Life: 100,000 hours
- Warranty: 2 years
- Mount Included: Recessed metal box with bar hangers
- Weight: 5.3 lbs
- Box Dimensions: 18.5in x 8.8in x 4.8in
- Sold In Multiples Of: 1
- Master Carton Size: 3
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: UL 924 Damp Location Listed - NFPA 101 - NFPA 70 - CEC T20
- UL Listed: Yes
- ETL Listed: No
- DLC Qualified: No
- Environment: Suitable For Damp Locations
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than the stated lead-time. All lead-times are estimates, and you will be notified by email if it will take longer than 5 business days to ship. Halco products ship directly from the manufacturer and require a combined minimum purchase of $150 in Halco merchandise. Multiple Halco items may be combined to meet the minimum.
