Description

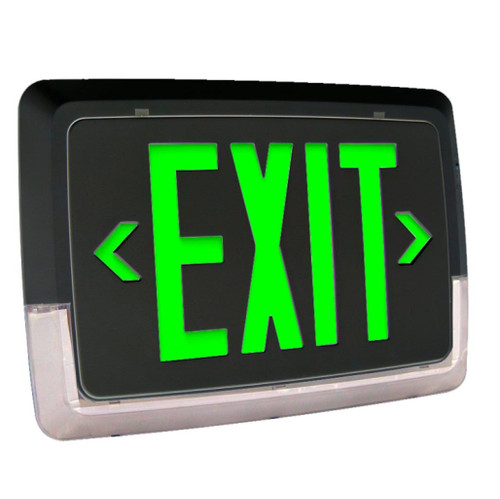

EMG-LPCU-G-BK Low-Profile Exit And Emergency Combo | Green Stencil With 90-Minute NiCad Battery For Wall-Mount Life Safety
Engineered for tight spaces and life-safety applications, this low-profile combination exit sign and emergency luminaire provides reliable, code-compliant illumination for corridors, stairwells, and doorways while minimizing visual clutter. The thin 1 in housing and integrated LED lightbar deliver low-glare emergency lighting with easy surface or junction-box mounting.
KEY FEATURES:
- Compact Design: 1 inch low-profile thermoplastic housing ideal for low-level (2' to 6') wall-mount installations.
- Integrated Backup: 90-minute maintenance-free 3.6V NiCad battery with manual test button and charging indicator ensures dependable emergency operation.
- Efficient LEDs: 3.1W lightbar (24 x 0.13W) producing 184 lumens of low-glare illumination for exit path visibility.
- Field Flexibility: Field-selectable snap-out chevrons and single-face green stencil simplify on-site configuration.
- Durable Construction: Injection-molded 5VA flame-retardant thermoplastic housing with acrylic, low-glare lens and chrome-plated reflector.
APPLICATIONS:
- Ideal for hallways, stairwells, and corridor egress in commercial and educational buildings.
- Well-suited for retail, office, and other public spaces requiring low-profile emergency signage.
- Works in restricted spaces above doorways or mounted low on walls for clear exit identification.
- Installation Tip: Use the universal J-box knockout or built-in keyhole slots for quick surface or junction-box mounting.
SPECIFICATIONS:
- Wattage: 3.1W
- Lumens: 184
- Average Life: 100,000 hours
- Color/Legend: Green Stencil, Single Face
- Battery: 3.6V NiCad, 90 minutes
- Voltage: 120-277VAC
- Mount: Surface Wall Mount with Universal J-Box Knockout and Keyhole Slots
- Housing: Black Injection-Molded 5VA Flame-Retardant Thermoplastic
- Lens/Reflector: Acrylic Lens with Chrome-Plated Metallized Reflector
- Warranty: 2 Year
- Operating Temp: 0C (32F) to 50C (122F)
- Dimmable: No
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: UL 924 Damp Location Listed - NFPA 101 and NFPA 70
- Compliance: CEC Title 20 Compliant; RoHS Compliant
- Location Rating: Damp or Dry
