Description

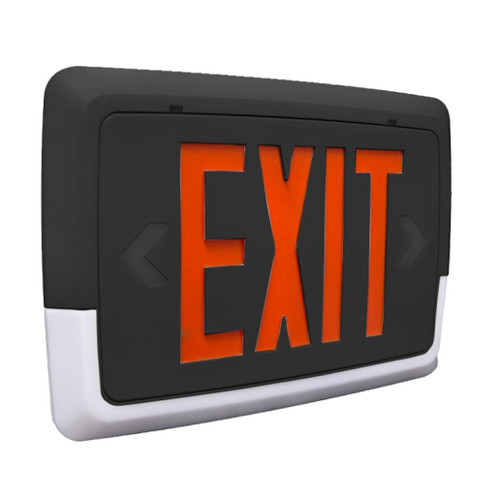

EMG-LPCU-R-BK Low-Profile Exit And Emergency Combo | Single-Face Red Legend For Hallways, Stairwells, And Low-Level Wall Mounting
Designed for low-level wall mounting and compact egress applications, this Halco exit and emergency combo delivers clear, low-glare illumination while minimizing profile and maintenance. The integrated emergency battery and field-selectable chevrons make it ideal for corridors, stairwells, and other life-safety egress paths where reliable, code-compliant illumination is required.
KEY FEATURES:
- Low-Profile Design: 1 in. thin housing engineered for low-level (2'-6') wall mounting and restricted spaces above doorways.
- Reliable Battery Backup: 90-minute maintenance-free 3.6V NiCad emergency battery with manual test button and charging indicator.
- Efficient LED Lighting: 24 LEDs (3.1W total) provide a low-glare light strip delivering 184 lumens for dependable egress illumination.
- Easy Installation: Universal J-box knockout and keyhole slots enable surface wall or junction box mounting.
- Field Flexibility: Field-selectable snap-out chevrons and single-face red legend for quick on-site configuration.
- Durable Construction: Injection-molded 5VA flame-retardant thermoplastic housing with chrome-plated reflector and UV-stabilized acrylic lens.
APPLICATIONS:
- Ideal for hallways and corridor egress illumination in commercial buildings.
- Well-suited for stairwells and emergency egress routes in educational facilities.
- Perfect for retail and office common areas requiring low-profile emergency fixtures.
- Installation Tip: Mount at low-level (2'-6') for intended low-profile pathway lighting and optimal visibility.
SPECIFICATIONS:
- Wattage: 3.1W
- Lumens: 184
- Average Life: 100,000
- Warranty: 2 Year
- Voltage: 120-277VAC
- Dimmable: No
- Battery: 90min maintenance free 3.6V NiCad
- Mount Options: Single Face Wall Mount - can mount low (2ft-6ft)
- Finish: Black Thermoplastic with Red Legend
- Lens: Chrome-plated metallized reflector with low-glare, UV-stabilized acrylic lens
- Housing Material: Injection molded 5VA Flame-retardant Thermoplastic
- Light Style: Lightbar
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL 924 Damp Location Listed - NFPA 101 and NFPA 70 - CEC T20 Compliant
- Environmental Rating: Suitable for Damp or Dry locations
- RoHS: Yes
