Description

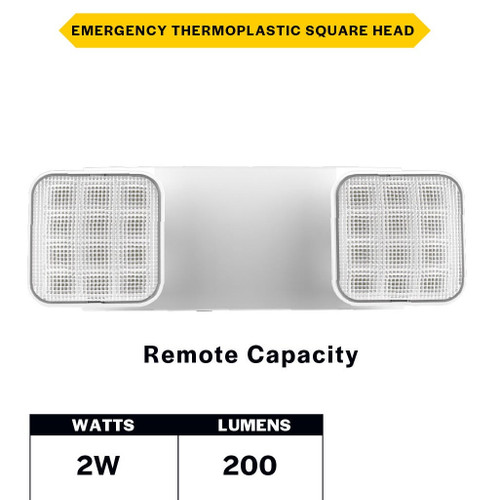

EMG-EME-SQ-WH-RC Emergency Lighting Unit With Remote Capacity | Damp-Location Wall Or Ceiling Egress Fixture With Adjustable Heads
Compact and dependable, this Halco emergency unit provides code-compliant egress illumination for hallways, stairwells, and commercial corridors. Built for quick surface or J-box mounting, the thermoplastic housing and adjustable LED heads deliver targeted light while the included battery backup ensures at least 90 minutes of operation during outages.
KEY FEATURES:
- Remote Capacity: 2W remote output supports 2 single or 1 double remote heads for added coverage.
- Adjustable LED Heads: Two 200-lumen, adjustable heads rotate 360° and tilt 90° for precise beam placement.
- Reliable Backup: 90-minute Ni-MH battery backup with 24-hour recharge time maintains egress lighting during power loss.
- Robust Construction: White thermoplastic housing with polycarbonate lens for durable, low-maintenance performance.
- Simple Installation: Mounts to J-box or ceiling using included canopy and mounting plate for fast retrofit or new installs.
APPLICATIONS:
- Ideal for hallways and stairwells in commercial and institutional buildings.
- Well suited for offices, retail corridors, and light industrial egress paths.
- Appropriate for schools, healthcare corridors, and warehouse exit routes.
- Tip: Use the adjustable heads to direct light along the path of egress for clear visibility without glare.
SPECIFICATIONS:
- Wattage: 2W
- Lumens: 200 lm (total from heads)
- Voltage: 120-277V
- Battery: Ni-MH, 90-minute emergency run time; 24-hour recharge
- Average Life: 50,000 hrs
- Warranty: 3 years
- Finish: White
- Lens: Polycarbonate
- Mounting: Surface wall mount to J-box or ceiling mount with included canopy
- Environment: Damp Or Dry Locations
- Dimmable: No
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: UL 924 Damp Location Listed; NFPA 101; NFPA 70; CEC T20; RoHS
- Listings: UL Listed
