Description

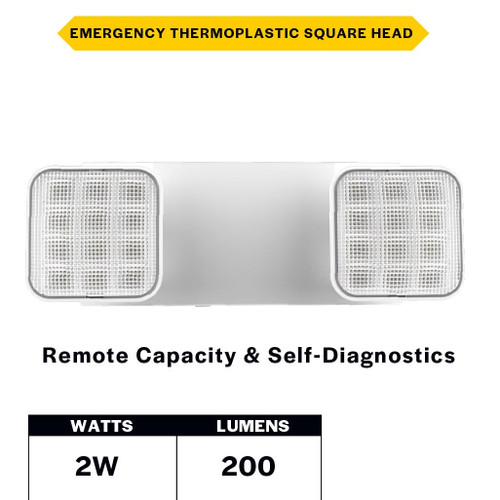

EMG-EME-SQ-WH-RC-SD Durable Square Emergency Lighting Unit | Remote Capacity And Self-Test For Hallways And Stairwells
Compact and reliable, this Halco emergency unit provides dependable illumination along egress paths for corridors, stairwells, and other life-safety areas. Its thermoplastic white housing and adjustable LED heads simplify ceiling or wall installation while delivering instant-on emergency light and reduced maintenance requirements.
KEY FEATURES:
- Integrated Emergency Backup: 90-minute Ni-MH battery backup provides required runtime during power loss.
- Remote Capacity: 2W remote capacity supports up to two single or one double remote head for expanded coverage.
- Self-Test/Self-Diagnostics: Built-in self-test and self-diagnostics reduce monthly inspection burdens and ensure readiness.
- Adjustable LED Heads: Two LED heads rotate 360° and pivot 90° for precise aiming of 200-lumen output.
- Durable Construction: White thermoplastic housing with polycarbonate lens is suited for damp or dry indoor locations.
APPLICATIONS:
- Ideal for hallways and corridors requiring code-compliant emergency lighting.
- Perfect for stairwells and egress routes in commercial and educational buildings.
- Well suited for offices and retail spaces needing compact emergency fixtures.
- Installation Tip: Mount to a J-box or use the included canopy for ceiling installations to streamline wiring and placement.
SPECIFICATIONS:
- Wattage: 2W
- Lumens: 200 lm
- Voltage: 120-277V
- Average Life: 50,000 hrs
- Battery: Ni-MH, 90-minute emergency runtime, 24 hour recharge time
- Remote Capacity: 2W (supports 2 single or 1 double remote head)
- Dimmable: No
- Finish: White
- Lens: Polycarbonate
- Mounting: Mount to J-Box or ceiling with included canopy
- Weight: 1.8 lbs
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: UL Listed; UL 924 Damp Location Listed
- Standards: NFPA 101, NFPA 70, CEC T20, RoHS
- Warranty: 3-year limited warranty
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than the stated lead-time. All lead-times are estimates, and you will be notified by email if it will take longer than 5 business days to ship. Halco products ship directly from the manufacturer and require a combined minimum purchase of $150 in Halco merchandise. Multiple Halco items may be combined to meet the minimum.
