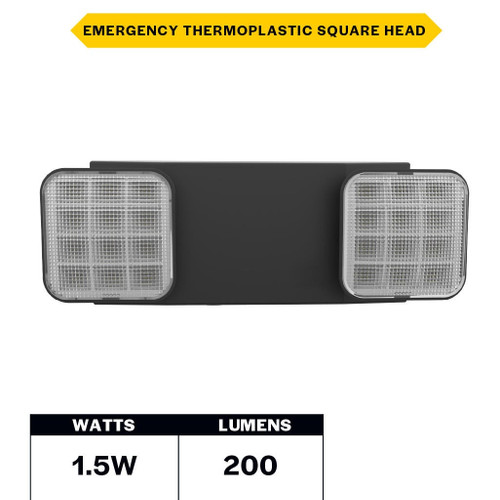

EMG-EME-SQ-BK Emergency LED Unit With 90-Min Runtime And 200 Lumen Heads | Damp-Rated Black Thermoplastic For Hallways
Compact and reliable life-safety lighting designed for corridors, stairwells, and other egress paths, this emergency unit provides dependable illumination during outages and mounts to a J-box or ceiling canopy for flexible installation.
KEY FEATURES:
- Integrated Emergency Backup: 90-minute Ni-MH battery ensures continuous lighting when power is lost; 24-hour recharge time.
- Adjustable Heads: Two LED, 360° adjustable heads deliver focused 200 lm illumination for clear egress visibility.
- Durable Construction: Black thermoplastic housing with polycarbonate lens resists damage in damp or dry locations.
- Universal Voltage: 120-277V input simplifies compatibility with commercial electrical systems.
- Low Power Consumption: 1.5W operating power with long 50,000-hour average life.
APPLICATIONS:
- Ideal for hallways, stairwells, and corridors in commercial and educational buildings.
- Suitable for offices, retail, and light industrial facilities requiring code-compliant emergency illumination.
- Great for retrofit or new installations where ceiling or wall mounting is needed.
- Usage Tip: Use ceiling canopy for discreet mounting in corridors or J-box for wall installations.
SPECIFICATIONS:
- Wattage: 1.5W
- Lumens: 200 lm
- Voltage: 120-277V
- Average Life: 50,000 hrs
- Warranty: 3 years
- Dimmable: No
- Finish: Black
- Housing Material: Thermoplastic
- Lens: Polycarbonate
- Mount Included: Yes (J-Box or ceiling canopy)
- Min Operating Temp: 0C (32F)
- Max Operating Temp: 40C (104F)
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL 924 Damp Location Listed; UL Listed
- Compliance: NFPA 101, NFPA 70, CEC T20, RoHS
- Packaging: Sold Individually; Master Carton Size: 6
