Description
Two Piece 5 Watt Emergency LED Driver | 500 Lumens | 90-Minute Backup | 120-277V Input

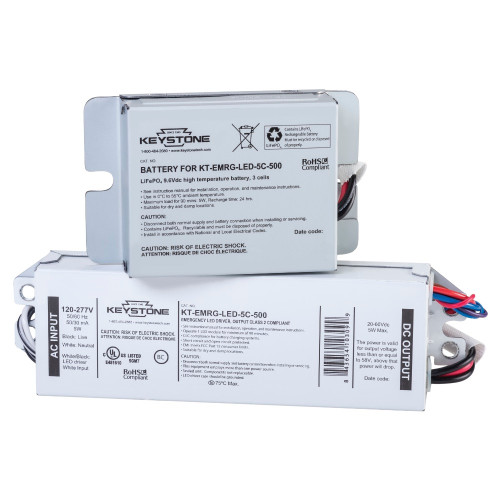

The Keystone KT-EMRG-LED-5C-500 is a two-piece 5W constant power LED emergency backup driver that provides 90 minutes of emergency illumination in case of power failure. Designed for universal 120-277V input, this driver supports LED fixtures with an output voltage range of 20-60V DC. Featuring a 2-piece design, this CEC Title 20-compliant emergency driver is suitable for commercial and industrial emergency lighting applications.
Features
- Wattage: 5W
- Input Voltage: 120–277V AC
- Output Voltage Range: 20V – 60V DC
- Output Current Range: 250mA @ 20V DC, 86mA @ 58V DC
- Emergency Runtime: 90 minutes
- Power Factor: > 0.9
- Battery Type: Maintenance-Free LiFePO4, 9.6V DC (3-cell)
- Recharge Time: 24 hours
- Certifications: UL 924, CEC Title 20 Compliant, FCC Compliant
- Lifespan: Designed for long-term emergency performance
- Warranty: 5-Year Limited Warranty
Benefits
- Provides 90 minutes of emergency illumination for code compliance.
- CEC Title 20 compliant for energy efficiency regulations.
- 2-piece compact design for easy installation in various applications.
- Compatible with a range of LED fixtures, operating between 20-60V DC.
- One-piece metal housing for durability and easy maintenance.
- Built-in test switch and LED indicator for system monitoring.
- Over-voltage, over-current, and short-circuit protection for enhanced safety.
Applications
- Commercial emergency lighting – Ideal for offices, retail stores, and hotels.
- Industrial safety lighting – Ensures compliance in warehouses and manufacturing facilities.
- Healthcare and educational buildings – Supports emergency lighting regulations.
- Multi-use exit and safety lighting – Provides backup for LED-based emergency lighting systems.
Product Specifications
- Max. Output Power: 5W
- Input Voltage: 120–277V AC
- Output Voltage Range: 20V – 60V DC
- Output Current: Load Dependent (250mA @ 20V, 86mA @ 58V)
- Emergency Runtime: 90 minutes
- Power Factor: > 0.9
- Battery Type: LiFePO4 (Maintenance-Free)
- Recharge Time: 24 hours
- Surge Protection: Over-voltage, over-current, and short-circuit protection
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Lifespan: Designed for long-term performance
- Certifications: UL 924, CEC Title 20, FCC Compliant
- Warranty: 5-Year Limited Warranty
- Case Material: Metal
Downloads
Disclaimers
Non-Returnable Item Notice:
Due to the sensitive electronic nature of LED drivers and the risk of improper installation, tampering, or programming, this item is non-returnable. Please confirm compatibility before purchasing. If your LED driver is defective upon arrival or during the warranty period, it may be eligible for a manufacturer warranty replacement. For assistance selecting the correct driver, please contact our support team.
