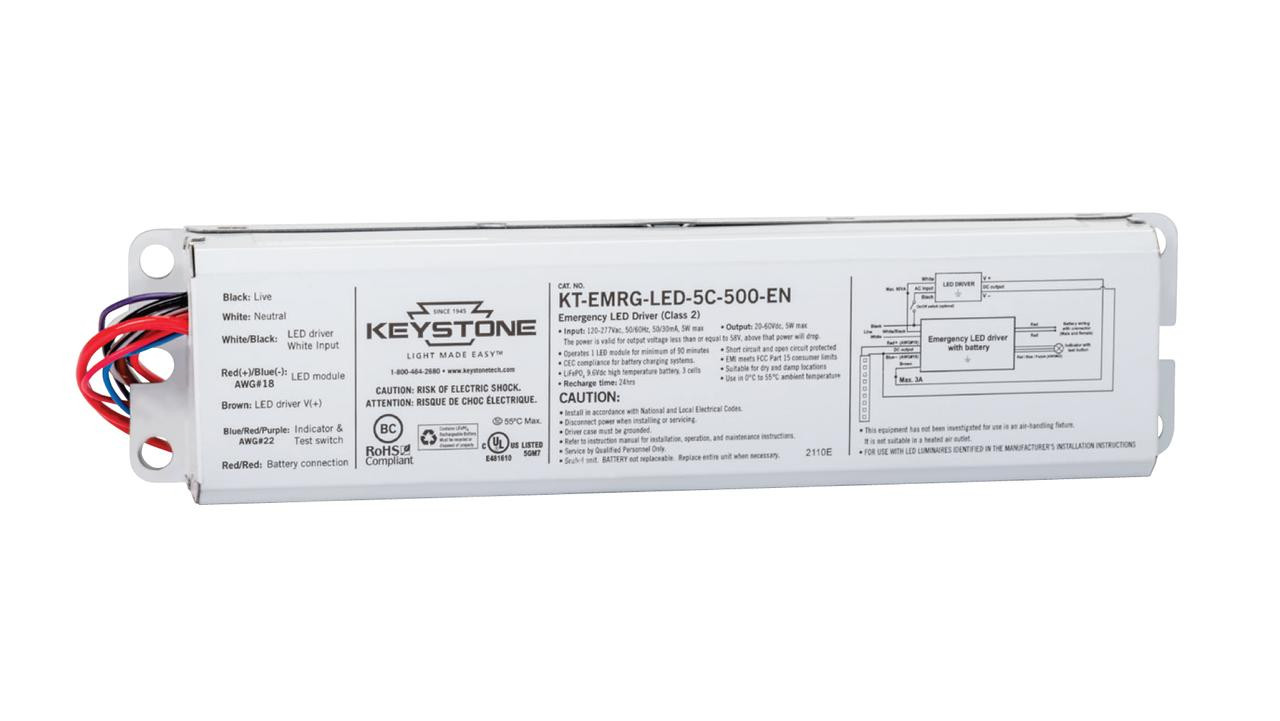

Name: Keystone KT-EMRG-LED-5C-500-EN 5W Emergency LED Driver
Brand: Keystone Technologies
SKU: KT-EMRG-LED-5C-500-EN
Price: 93.53 USD
Availability: InStock

Description

Constant Wattage LED Emergency Back-Up Driver | 5W Output

Features

Drives LED loads at 5W (nominal) for a minimum of 90 minutes
Meets FCC Part 15 (Class B) consumer limits
Short circuit overload and open load protection
Suitable for dry and damp locations
Saftey Standard: UL 924, Complies with CEC Title 20 Efficiency Standards
Operating temperature: 0ºC/32ºF to 55ºC/131ºF
Input frequency: 50/60 Hz
Test switch/Charging indicator light
Battery capacity: 1200mAh
Listed for field or factory installation: UL 924 and CSA C22.2 no. 141 emergency lighting compliant
3A max. pass-through current
Battery capacity: High-Temperature, Maintenance-Free, LiFePO4 Battery, 9.6Vdc, 3 cell

Downloads

Caution

Use only non-shunted lamp-holders. Do not install product in a fixture with shunted lamp-holders (found in all fixtures using instant start ballasts). If the current lamp-holders are shunted, remove them and replace them with non-shunted lamp-holders. Make new connections directly to terminals as indicated above.

Disclaimers

*This typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. Keystone has multiple warehouse's around the country to help serve you better.

Non-Returnable Item Notice:

Due to the sensitive electronic nature of LED drivers and the risk of improper installation, tampering, or programming, this item is non-returnable. Please confirm compatibility before purchasing. If your LED driver is defective upon arrival or during the warranty period, it may be eligible for a manufacturer warranty replacement. For assistance selecting the correct driver, please contact our support team.

Extra Information

Brand:

Keystone Technologies

UPC:

843654132426

Catalog No:

KT-EMRG-LED-5C-500-EN

Ballast Type:

LED Driver

Light Source:

LED

Dimmable:

Max. Output Power:

5 Watt

Current Type:

Fixed

Driver Type:

Emergency

Dimming Type:

Non-Dimming

Min Output Current:

86mA

Max Output Current:

250mA

Min Output Voltage:

20V

Max Output Voltage:

60V

Min Input Voltage:

120V

Input Voltage:

120â€“277Vac Â±10%

Output Voltage:

20~60Vdc

Max Input Voltage:

277V

Size:

9.00x2.30x1.30 inches

Power Factor (Efficiency):

>0.5

Output Current:

250â€“86mA

Warranty:

5 Years

Pack:
