100W LED HID Retrofit | EX39 Base | Power Select | 400W Metal Halide Wall Pack Retrofit

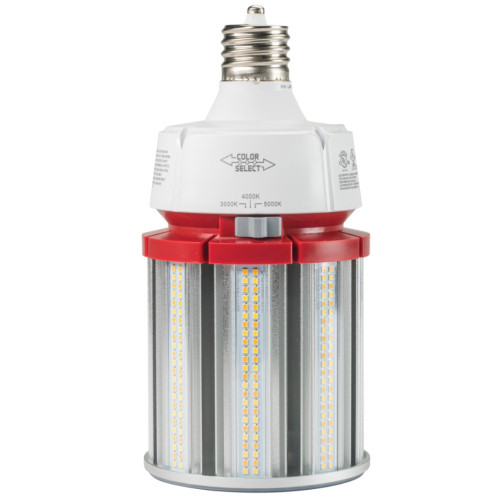

The Keystone KT-LED100PSHID-EX39-850-D /G4 is a high-efficiency LED replacement for 400W metal halide lamps, featuring Power Select technology for adjustable wattage settings of 100W, 80W, or 63W. Delivering up to 14,500 lumens at 5000K daylight white, this EX39 mogul-base LED retrofit ensures superior brightness, efficiency, and longevity for commercial and industrial applications.
Key Features:
- Selectable Wattage: 100W / 80W / 63W
- Selectable Color Temperature: 5000K (Daylight)
- Luminous Output:
- 100W – Up to 14,500 lumens (145 lm/W)
- 80W – Up to 11,600 lumens
- 63W – Up to 9,135 lumens
- Metal Halide Equivalent: 400W
- Voltage Range: 120-277V
- Base Type: EX39 (Mogul)
- IP64 Rated: Water-resistant for durability in various environments
- Integral Driver: No external driver or ballast needed
- Surge Protection: 4kV protection for enhanced reliability
- Long Lifespan: 50,000+ hours
- Instant Startup: Operates without warm-up delay
- UL Listed: Certified for safety and performance
- Suitable for Enclosed Fixtures: Designed to function in fully enclosed applications
Advantages:
- Optimized for HID Retrofits: Ideal for replacing 400W metal halide lamps in wall packs and area lights
- Customizable Power Output: Selectable wattage for energy savings and performance tuning
- Energy Efficient: Reduces energy consumption by up to 75% compared to metal halide lamps
- Durable & Reliable: IP64 rating ensures resistance to dust and water intrusion
- Maintenance-Free Operation: 50,000+ hour lifespan significantly reduces replacement frequency
Ideal Applications:
- 400W Metal Halide Wall Pack Retrofits
- Area and security lighting
- Walkways and pathways
- Commercial and industrial lighting
- Fully enclosed fixtures
Technical Details:
- Model: KT-LED100PSHID-EX39-850-D /G4
- Base Type: EX39 (Mogul)
- Wattage Options: 100W / 80W / 63W
- Selectable CCT: 5000K
- Luminous Output: Up to 14,500 lumens
- Voltage Range: 120-277V
- CRI Rating: >80
- IP Rating: IP64 (Water-resistant)
- Dimming: Not compatible with standard dimmers
- Lifespan: 50,000+ hours
- Certifications: UL Listed
- Physical Dimensions:
- Body Length: 10.47 inches
- Illuminated Length: 4.61 inches
- Diameter: 5.12 inches
