Description

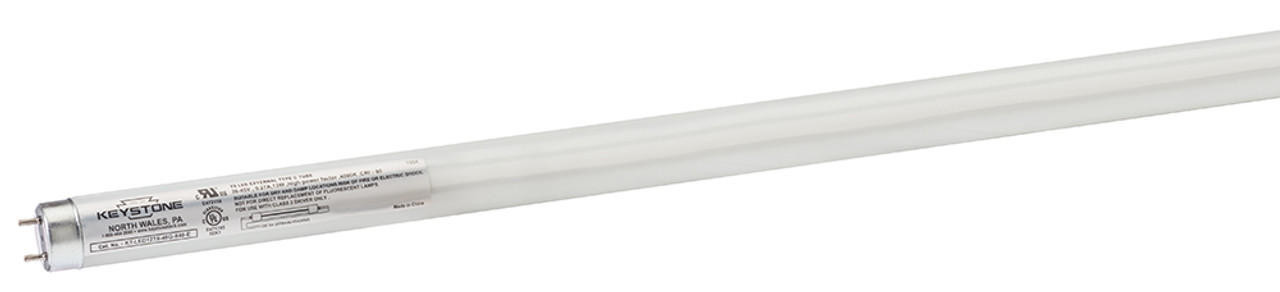

Energy-Efficient 10W 48-inch T8 LED Tube | 3500K Neutral White | Remote Driver Needed | 0-10V Dimming
The Keystone KT-LED10T8-48G-835-E is a Type C LED tube designed for superior efficiency and performance in commercial and industrial applications. With a 10W power rating, this T8 LED tube provides 3500K neutral white illumination, ensuring high visibility and energy savings. Engineered for external drive compatibility, this tube offers 0-10V dimming for adaptable lighting control.
Key Features:
- Power Rating: 10W
- Color Temperature: 3500K (Neutral White)
- Luminous Output: 1,650 lumens
- Efficacy: 143 lm/W
- CRI: >83 for enhanced color accuracy
- Voltage: 36-45V DC (Requires Keystone External Driver)
- Dimming Compatibility: 0-10V dimming
- Base Type: G13 (Medium Bi-Pin)
- Beam Angle: 240°
- Lifespan: 70,000+ hours (L70)
- Frosted Glass Design: Eliminates pixelation
- Instant Startup: No warm-up delay
- Eco-Friendly: Mercury-free and RoHS compliant
- Certifications: UL Classified & DLC Listed
Advantages:
- Energy Efficient: Reduces power consumption compared to fluorescent tubes
- Long-Lasting Performance: 70,000+ hour lifespan for minimal maintenance
- Smooth Dimming: 0-10V dimming compatibility for flexible lighting control
- Enhanced Optical Performance: Frosted glass eliminates glare and pixelation
- Safe and Reliable: UL Classified and DLC Listed for quality assurance
Ideal Applications:
- Offices and conference rooms
- Schools and universities
- Hospitals and healthcare facilities
- Commercial buildings and retail spaces
- Industrial and warehouse lighting
Technical Details:
- Model: KT-LED10T8-48G-835-E
- Base Type: G13 (Medium Bi-Pin)
- Wattage: 10W
- Selectable CCT: 3500K
- Luminous Output: 1,650 lumens
- Efficacy: 143 lm/W
- Voltage Range: 36-45V DC (External Driver Required)
- CRI Rating: >83
- Beam Angle: 240°
- Dimming: 0-10V dimmable
- Rated Lifetime: 70,000+ hours
- Certifications: UL Classified, DLC Listed
- Operating Temperature: -20ºC to 45ºC (-4ºF to 113ºF)
