Description

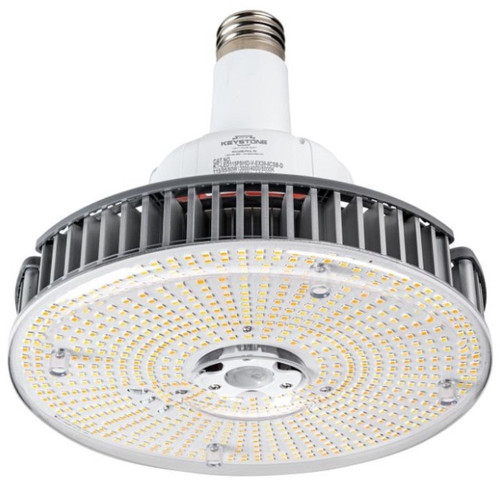

HID Replacement Retrofit LED Lamp | 115W Max | 120-277V | EX39 Base | CCT Selectable
Keystone KT-LED115PSHID-V-EX39-8CSB-D is a power-selectable and CCT-selectable HID LED retrofit replacement lamp designed for commercial and industrial lighting applications. This high bay retrofit lamp features adjustable wattage (115W/95W/80W) and three color temperatures (3000K, 4000K, and 5000K) for customizable illumination. With 50,000+ hours of rated life, 6kV surge protection, and an IP64 rating, it is built for high-performance lighting in warehouses, parking garages, and large indoor spaces.
Features
- Selectable Wattage: 115W, 95W, or 80W for adjustable lumen output
- Selectable CCT: 3000K (Soft White), 4000K (Cool White), 5000K (Daylight)
- Lumen Output: Up to 17,136 lumens at 4000K
- Voltage Range: 120-277V universal input
- Base Type: EX39 mogul base for easy installation
- Enclosed Fixture Rated: Suitable for use in enclosed fixtures
- Surge Protection: 6kV built-in protection
- IP64 Rated: Water and dust-resistant for indoor/outdoor applications
- Dimming Compatibility: Works with sensors (not standard dimmers)
- Long Lifespan: Rated for 50,000+ hours
Benefits
- Metal Halide Replacement: Directly replaces HID lamps for higher efficiency
- Energy Savings: Uses up to 70% less energy than traditional HID lamps
- Flexible Installation: Adjustable wattage and CCT for different applications
- Durability: Built for harsh environments with high temperature tolerance (-40°F to 122°F)
- Low Maintenance: Extended lifespan reduces frequent replacements
Applications
- Warehouses and distribution centers
- Parking garages and canopy lighting
- Industrial high bay and low bay lighting
- Street and area lighting
- Gymnasiums and large indoor spaces
Product Specifications
- Model Number: KT-LED115PSHID-V-EX39-8CSB-D
- Input Voltage: 120-277V
- Selectable Wattage: 115W / 95W / 80W
- Selectable CCT: 3000K, 4000K, 5000K
- Luminous Output: Up to 17,136 lumens
- Beam Angle: 114.1°
- Base Type: EX39 Mogul Base
- Operating Temperature: -40°F to 122°F
- Surge Protection: 6kV
- IP Rating: IP64 (Dust & Water Resistant)
- Lifespan: 50,000+ hours
