Description

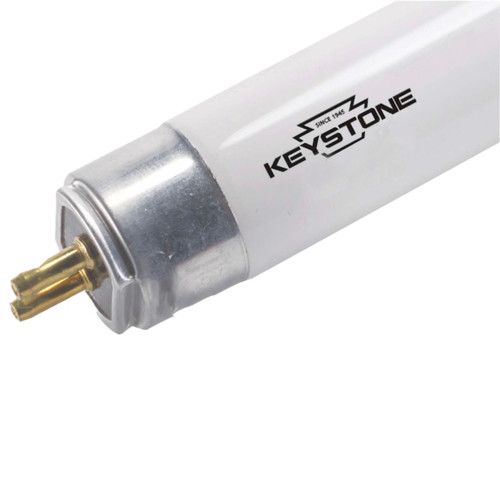

12W Energy-Efficient T5 LED Tube | 5000K Daylight | Type C External Driver | Dimmable
The Keystone KT-LED12T5HE-48G-850-E-CP is a high-performance, energy-efficient 4ft LED T5 Tube designed to replace traditional fluorescent lamps. With advanced dimming capability and superior brightness, this tube delivers exceptional lighting quality while significantly reducing energy costs. Its durable construction and compatibility with Keystone's external drivers make it a reliable choice for various settings.
Features:
- High efficacy of 138 lumens per watt, delivering 1800 lumens of brightness.
- UL Type C design with external driver compatibility.
- Advanced 0–10V dimming for customizable lighting.
- 240º beam angle for wide, even light distribution.
- Long-lasting performance with a rated life of 50,000+ hours.
Benefits:
- Saves energy and lowers electricity costs.
- Provides bright, consistent lighting for enhanced visibility.
- Dimmable function allows personalized lighting control.
- Reduces maintenance with a long lifespan and durable materials.
Applications:
- Commercial offices, retail stores, and healthcare facilities.
- Industrial environments such as warehouses and manufacturing plants.
- Residential use in basements, garages, and kitchens.
- Retrofits for fluorescent T5 fixtures in existing setups.
Product Specifications:
- Wattage: 12W
- Lumens: 1800
- Efficacy: 138 LPW
- Color Temperature: 5000K
- CRI: >82
- Dimming: 0–10V compatible
- Base Type: G5 (Miniature Bi-Pin)
- Nominal Length: 48 inches (4ft)
- Beam Angle: 240º
- Lifespan: 50,000+ hours
- Certifications: UL Classified (Standard 1598C), Damp Location Rated
- Operating Temperature: –20°C to 45°C
