Keystone KT-LED130HID-V-EX39-840-S-DP

SKU:
KT-LED130HID-V-EX39-840-S-DP
Typically ships in 2-3 business days* View full description
$275.43
Customer Reviews

Description

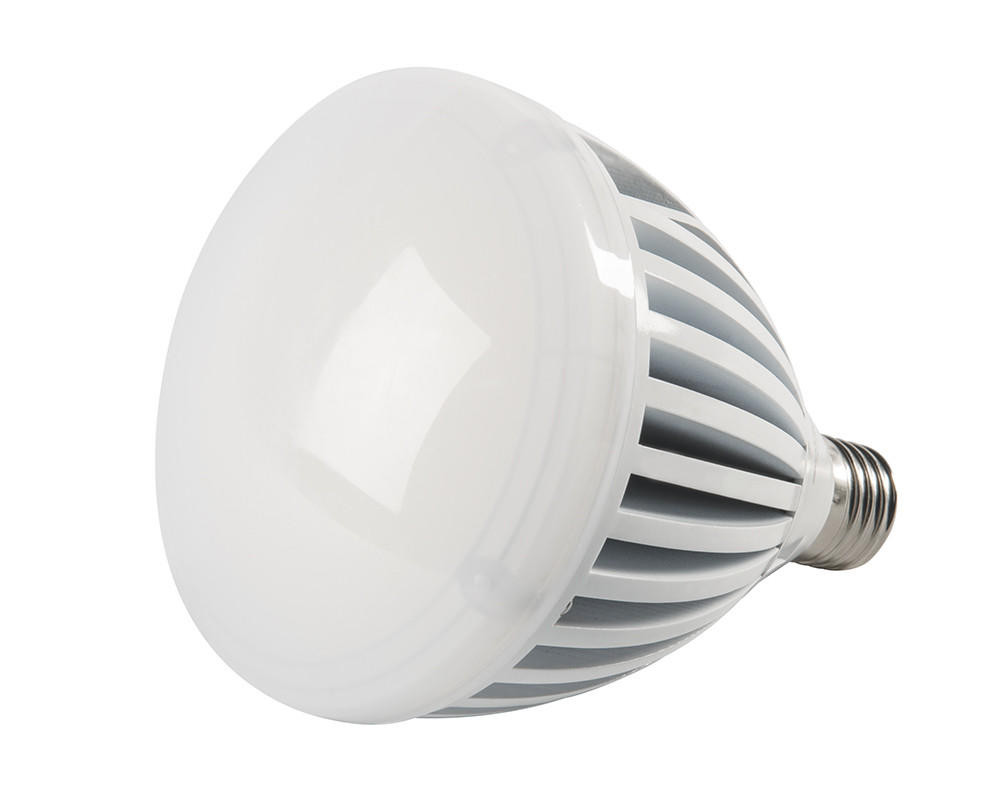

130W HID Replacement LED Lamp | 4000K | >80 CRI | Ballast Compatible

Keystone's SmartDrive HID Replacement LED lamps allow for easy upgrades to your existing HID fixtures. No rewiring needed as these are plug and play, working on the existing magnetic ballast. Designed to retrofit 400W Metal Halide lamps by working on the following HID ballasts with ANSI Codes: M59/M132/M135/M154/M155. Suitable for dry or damp locations, and rated for enclosed fixtures. Install only in vertical, base-up orientation. Lower wattage draw from lamp relative to the HID lamp allows for longer ballast life. When retrofitted, existing fixture changes from a Lagging (Inductive) Power Factor Source to a Leading (Capacitive) Power Factor Source; this change means the building's overall electric power factor may be improved. Does not work on Reactor or Electronic Ballasts. Lamp includes Safety Tether for additional security when installing lamp in luminaire.

Features

  • Compatible with Existing Magnetic HID Ballast (ANSI Codes: M59/M132/M135/M154/M155)
  • Plug and Play Installation; No Re-Wiring Required
  • 50,000+ Hour Lifetime (L70); Lasts 2.5x Longer than Standard HID Lamps
  • Environmentally Friendly: No Mercury Used
  • Instant Startup
  • Operating Temperature: -40ºC to 35ºC
  • Suitable for Dry and Damp Locations
  • Frosted Lens Eliminates Glare
  • Rated for Open or Enclosed Fixtures
  • Install Only in Vertical, Base-Up Orientation
  • Lower Wattage Draw Can Extend Lifetime of HID Ballast
  • When Retrofitted, Existing Fixture Changes from a Lagging (Inductive) Power Factor Source to a Leading (Capacitive) Power Factor Source; This Change May Help Improve the Building’s Overall Electrical Power Factor
  • Does Not Work on Reactor or Electronic Ballasts
  • Lamp Includes Safety Tether for Additional Security When Installing Lamp in Luminaire
  • Suitable for Use in Fully Enclosed Fixture

Downloads


Caution

Use only non-shunted lamp-holders. Do not install product in a fixture with shunted lamp-holders (found in all fixtures using instant start ballasts). If the current lamp-holders are shunted, remove them and replace them with non-shunted lamp-holders. Make new connections directly to terminals as indicated above.

Disclaimers

*This product is built to order typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time.  All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. Keystone has multiple warehouse's around the country to help serve you better.


Extra Information

Brand:
Keystone Technologies
UPC:
890949014158
Catalog No:
KT-LED130HID-V-EX39-840-S-DP
Wattage:
130 Watts
Color Temperature:
4000K
Base:
EX39 (Mogul)
CRI:
>80
Dimmable:
No
Life Hours:
50,000
Equivalent:
400 W/320 W
UL Listed:
Yes
Voltage:
120–277V
Length (in.):
9.27
Diameter (in.):
7.87
Warranty:
5 Year
